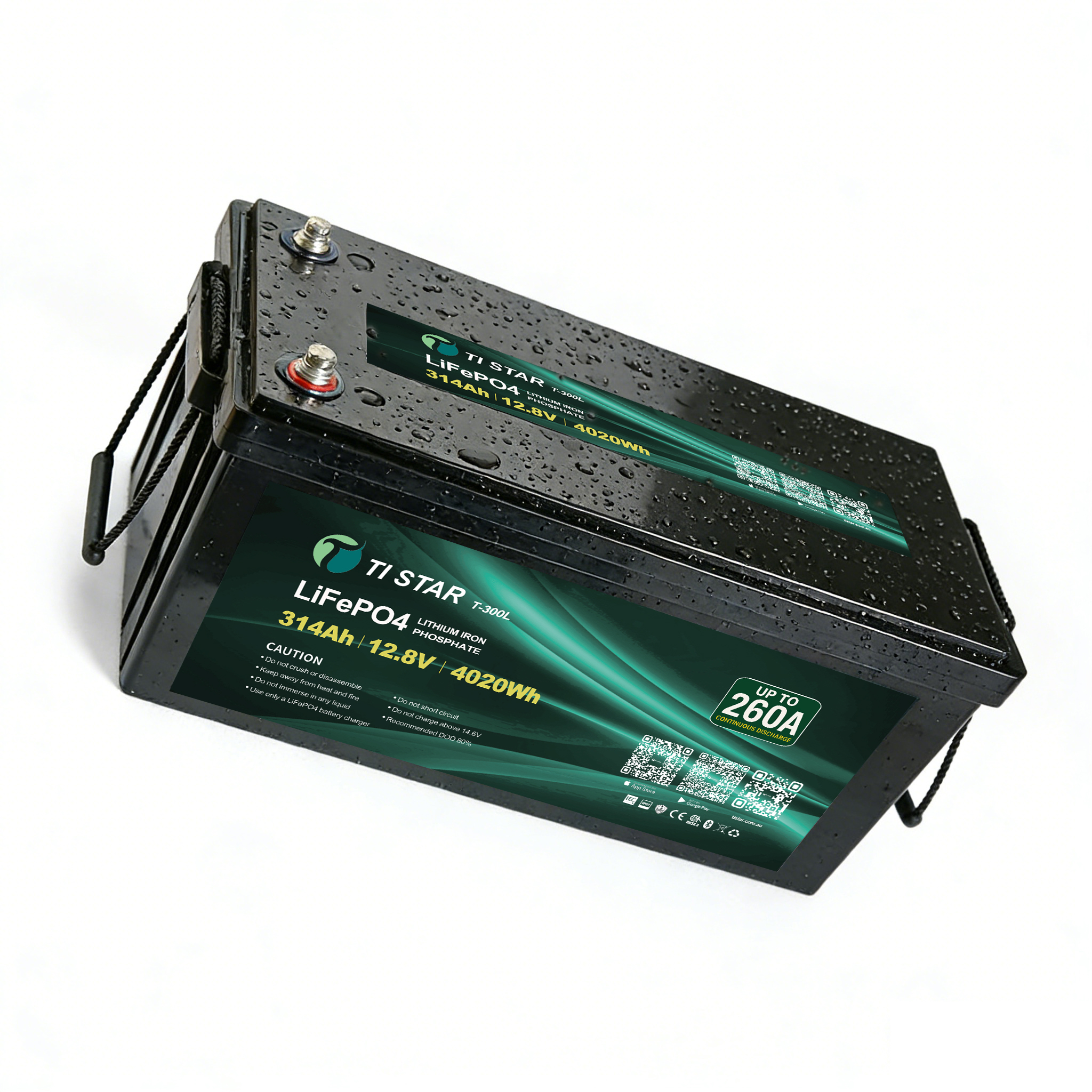

Tistar Smart BMS Long 12.8V 300Ah Lithium Battery with Bluetooth/ IEC62619/ IP67/ 5-Year Warranty/Brisbane Stock
- Whole battery IEC 62619 certified and AS/NZS 3001:2022 compliant

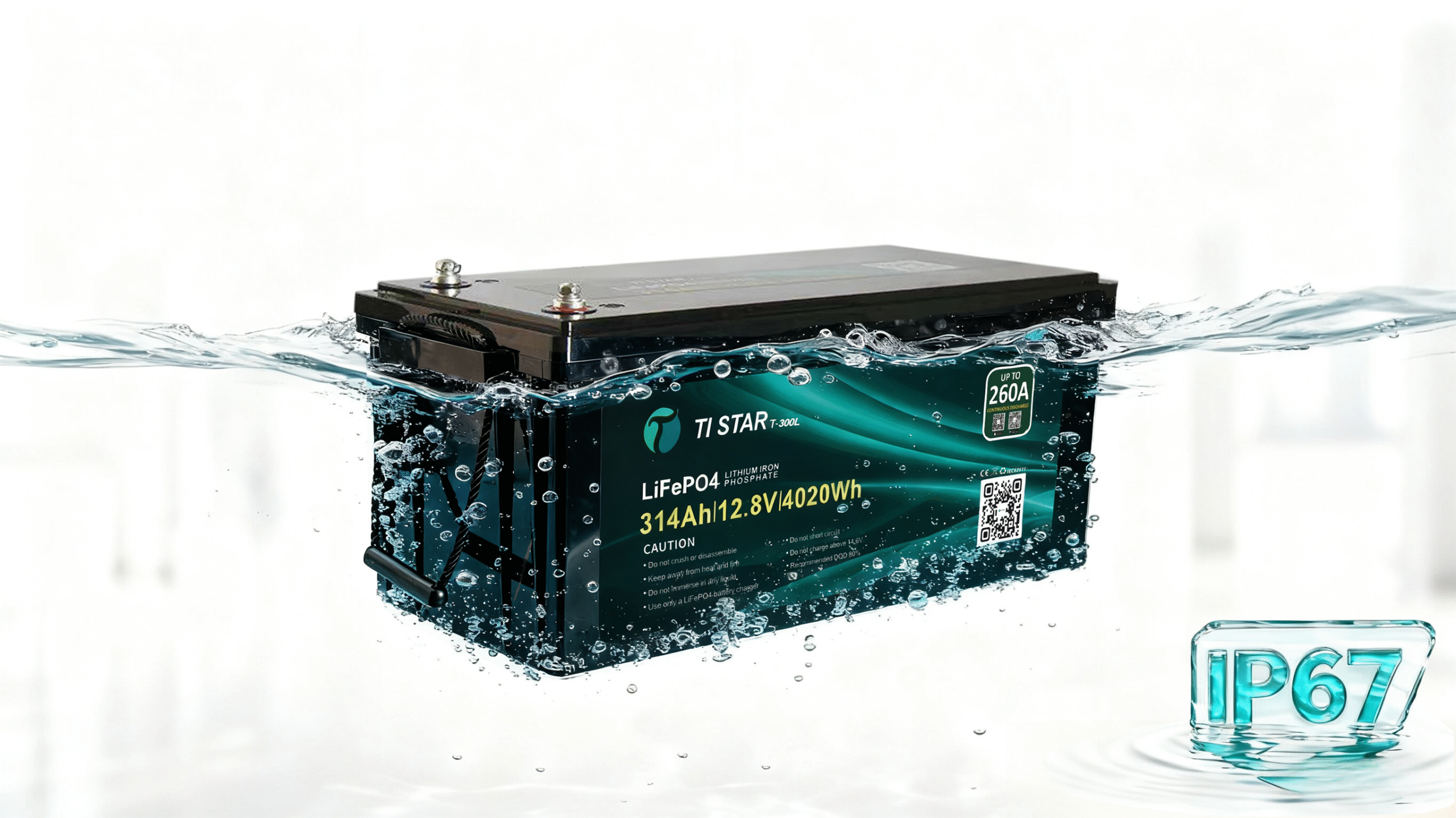

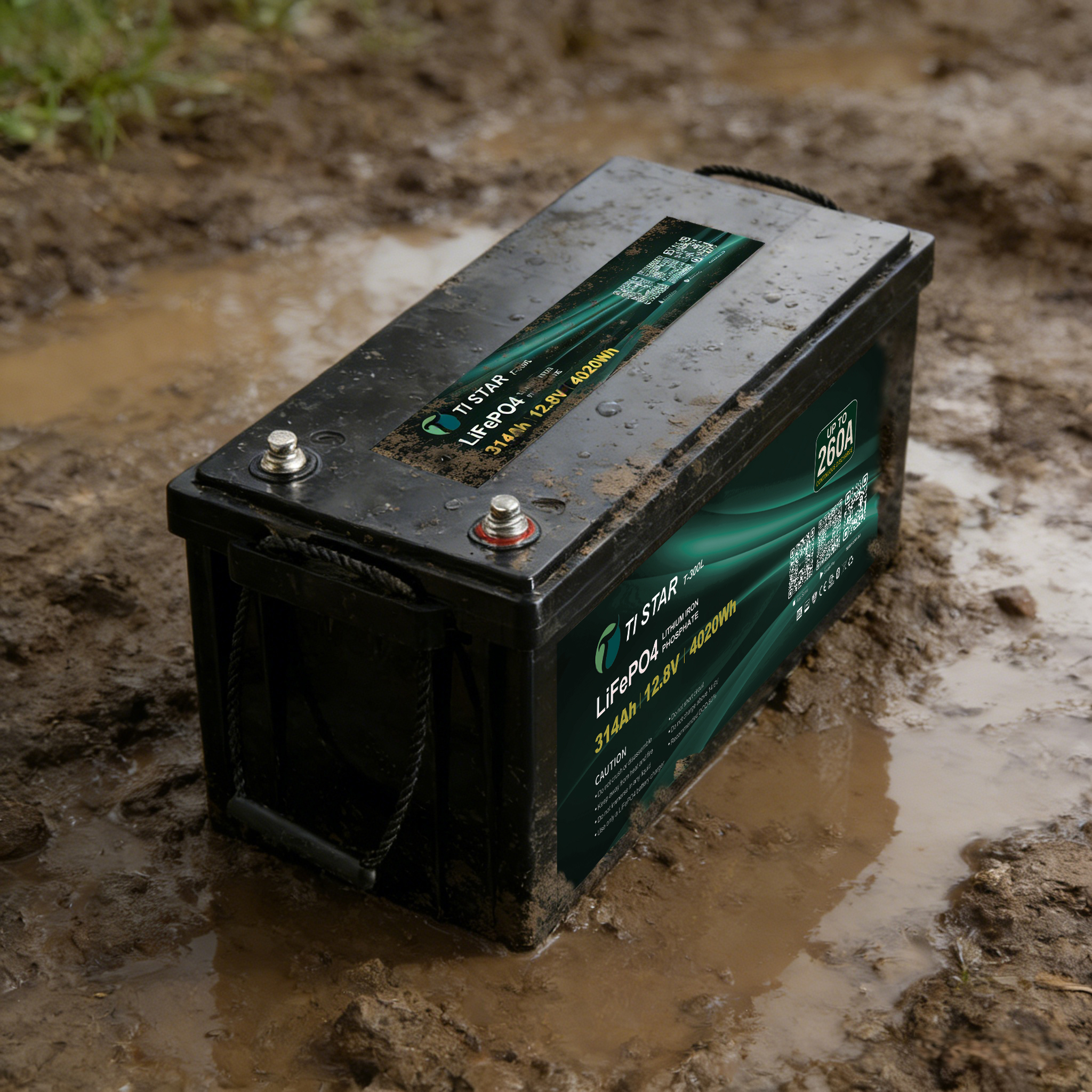

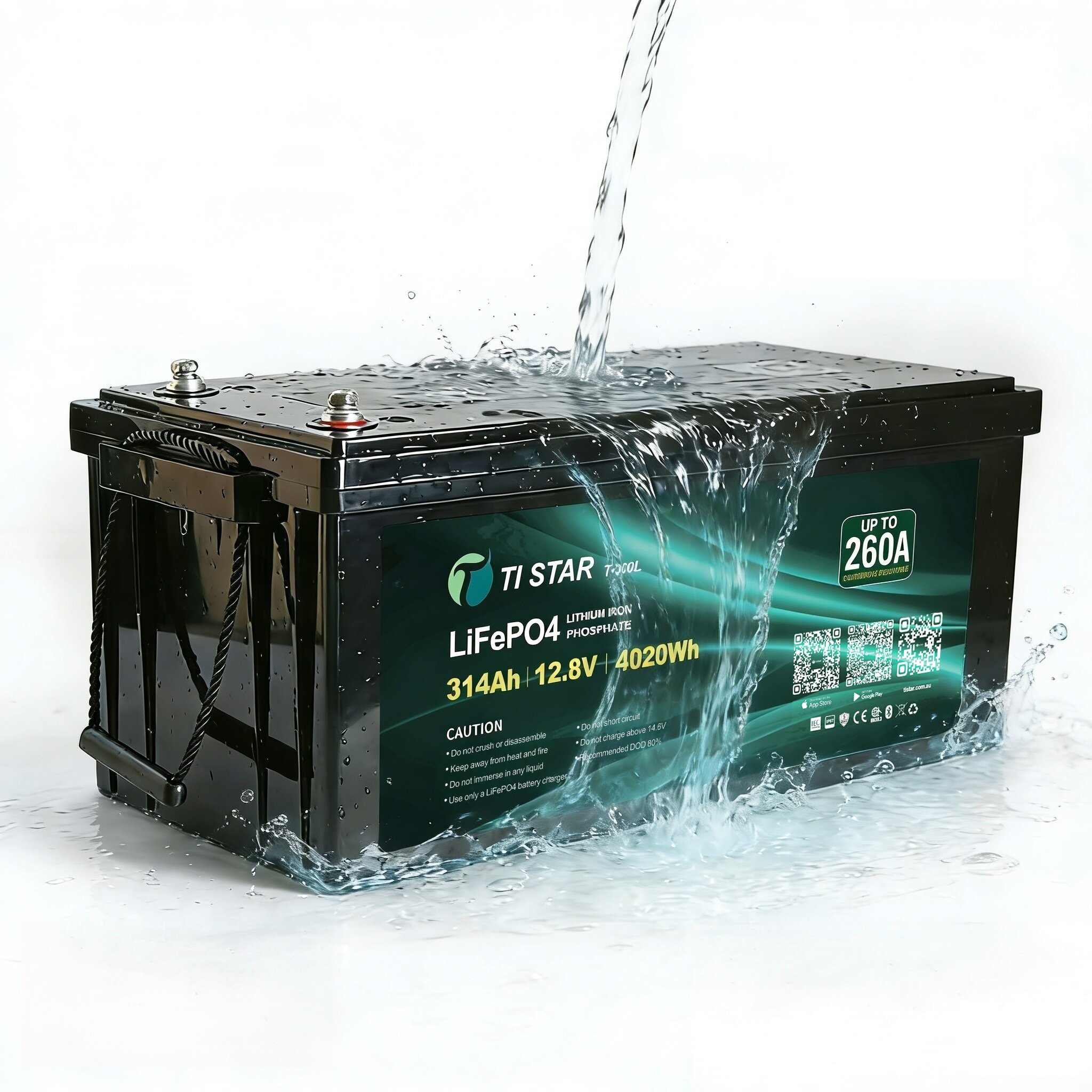

- IP67 rated, withstands 1m water for 30 minutes.

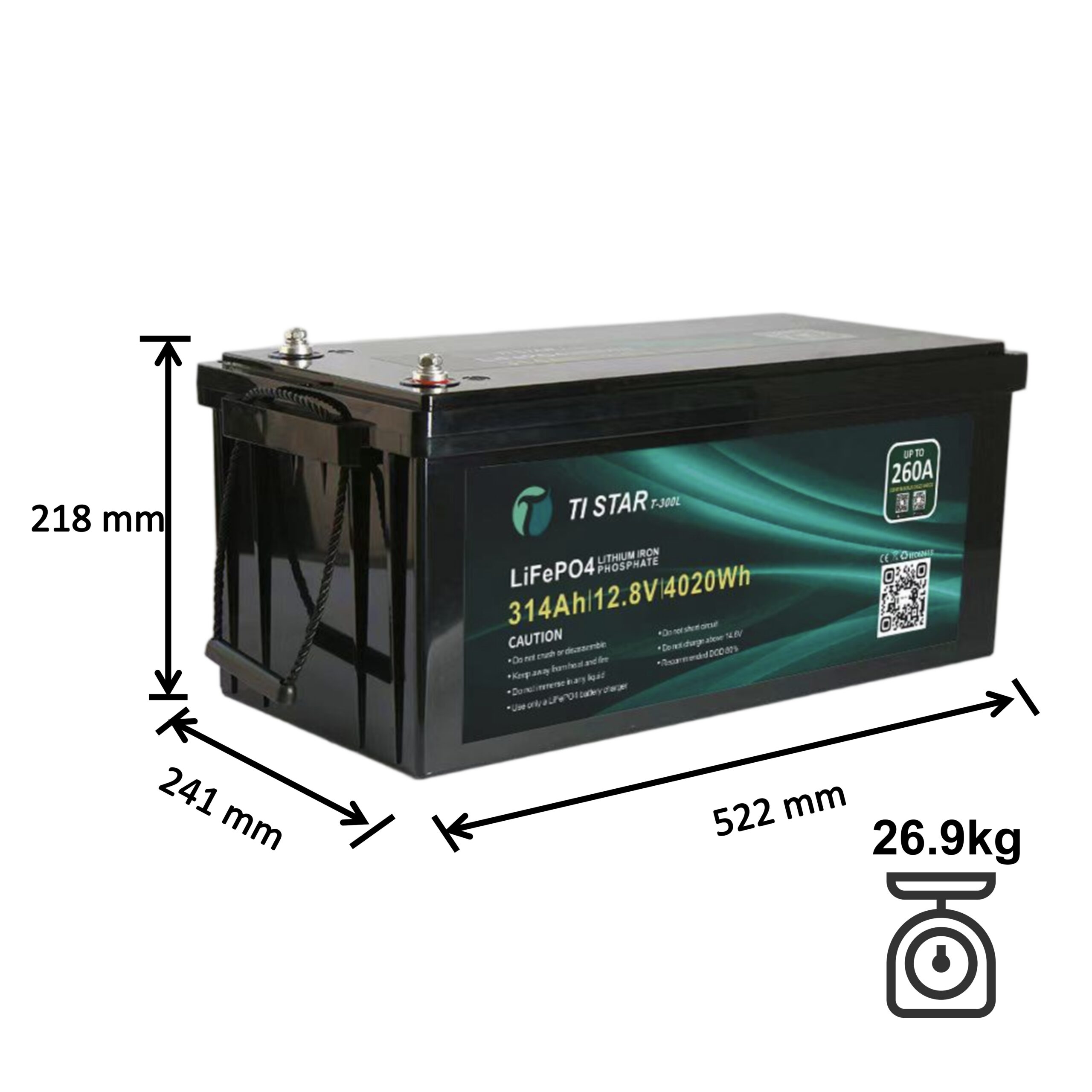

- Compact size 522x241x218 mm; Lightweight at only 26.9kg, easy to carry and install.
- Built with LiFePO4 prismatic cells used in large-scale energy storage – reliable, low-resistance, and long-lasting.
- 260A continuous discharge, runs 3000W inverter with ease.
- Up to 260A fast charge, ~90% in 1.35 hours under fast-charge mode.
- Smart BMS provides protection against overcharge, over-discharge, short circuit, over-temperature, and cell imbalance.
- Low-temperature protection: charging limited below 0°C, discharging limited below -20°C to ensure battery safety.
- Allows up to 4 batteries in parallel.

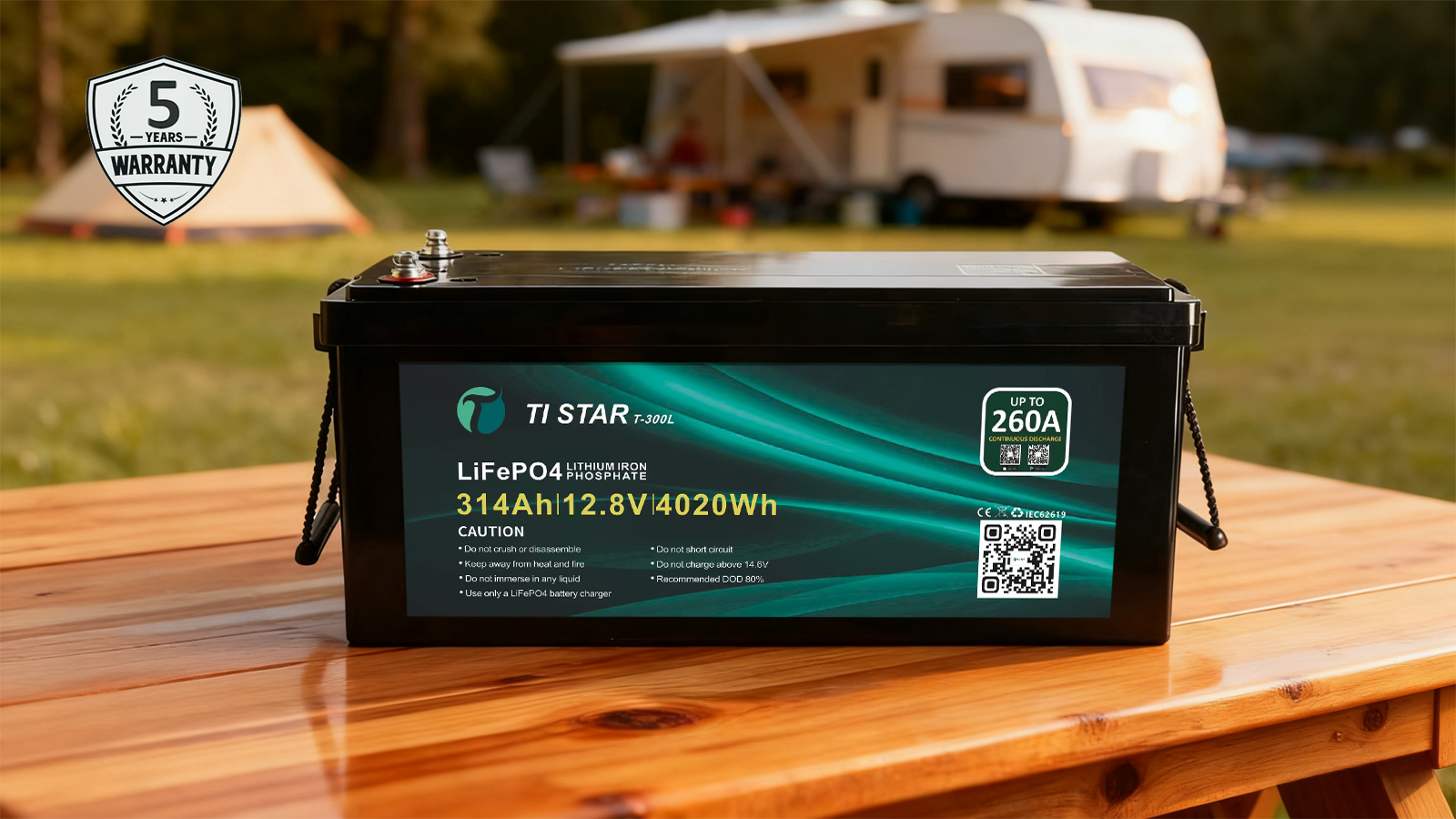

- 5-year warranty + fast local support (Brisbane warehouse)
⚠️ For parallel use, ensure each battery is fully charged and the voltage difference is less than 0.05V before connection.
Description
Specs
Electrical Characteristics |
Voltage Nominal |
12.8V 314Ah |
Max. Out Put Power |
3328W ( recommended to use 3000W inverter) |
|
Energy |
4019.2 Wh |
|
Cycle Life |
>6000 cycles @0.2C, 80% DOD, 25°C |
|
Mechanical |
Dimensions(L*W*H) |
522*241*218 (including terminals) |
Weight |
26.9±1 kg |
|
Case Material |
ABS |
|
Terminal Type |
M8 |
|
Parallel Connection |
Allows up to 4 units |
|
Standard Charge |
Charge Voltage |
14.6 V ±0.2 V |
Charge Mode |
CCCV |
|
Recommended Charge Current |
62 A |
|
Max. Charge Current |
260 A |
|
Charge Cut-off Voltage |
14.6 V |
|
Standard Discharge |
Continuous Discharge Current |
260 A |
Max discharge current |
550A (3S) |
|
Discharge Cut-off Voltage |
10.0 V |
|
Environmental |
Charge Temperature |
0°C to 60°C |
Discharge Temperature |
-20°C to 65°C |
|
Storage Temperature |
-5°C to 45°C |
|
Ingress Protection Rating |
IP67 |
|
Features |

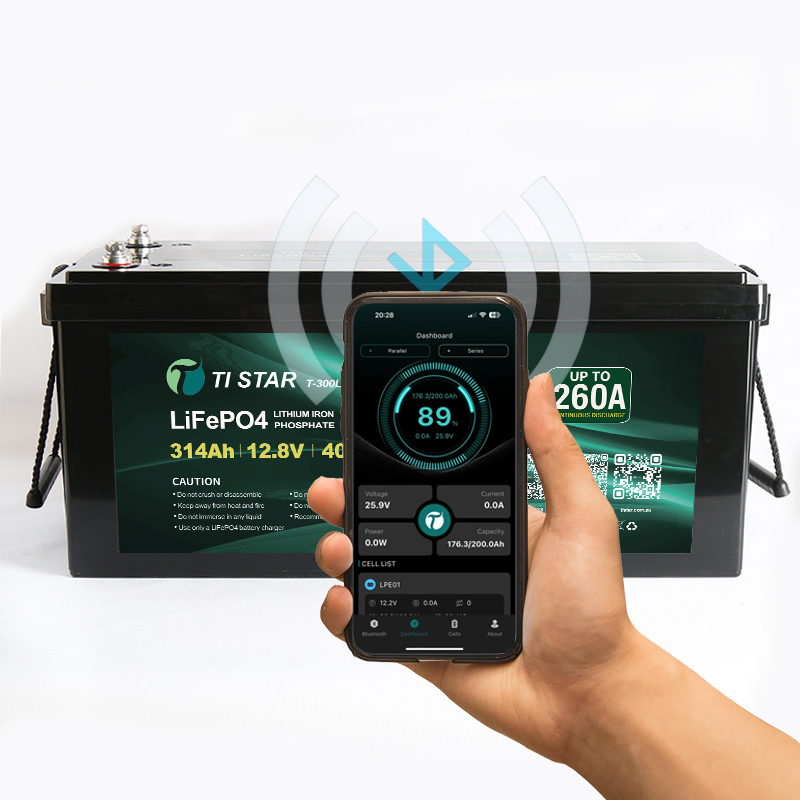

Bluetooth |

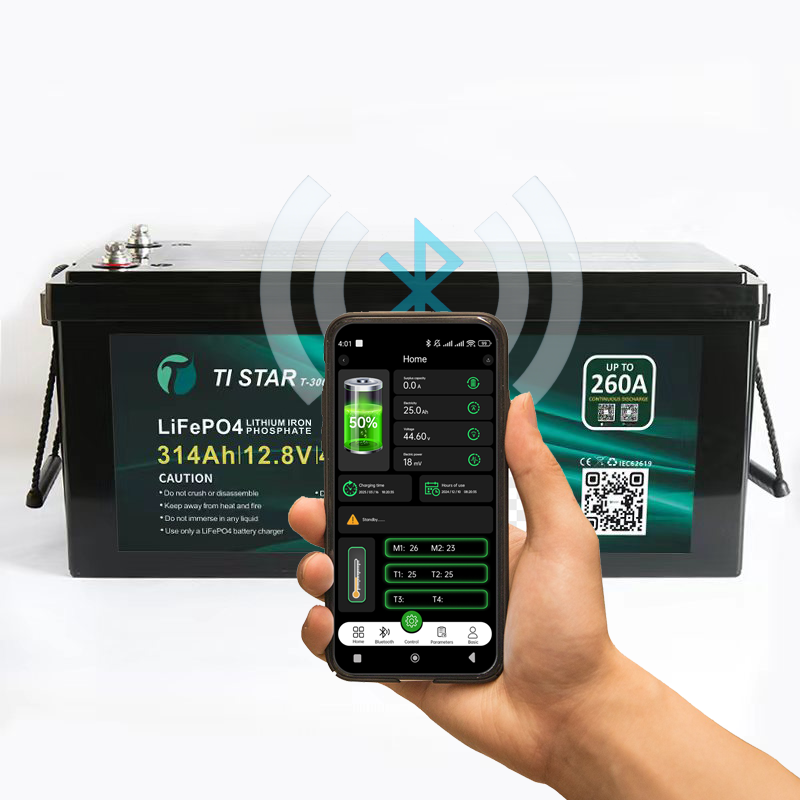

Bluetooth 4.0 (iOS & Android app) |
