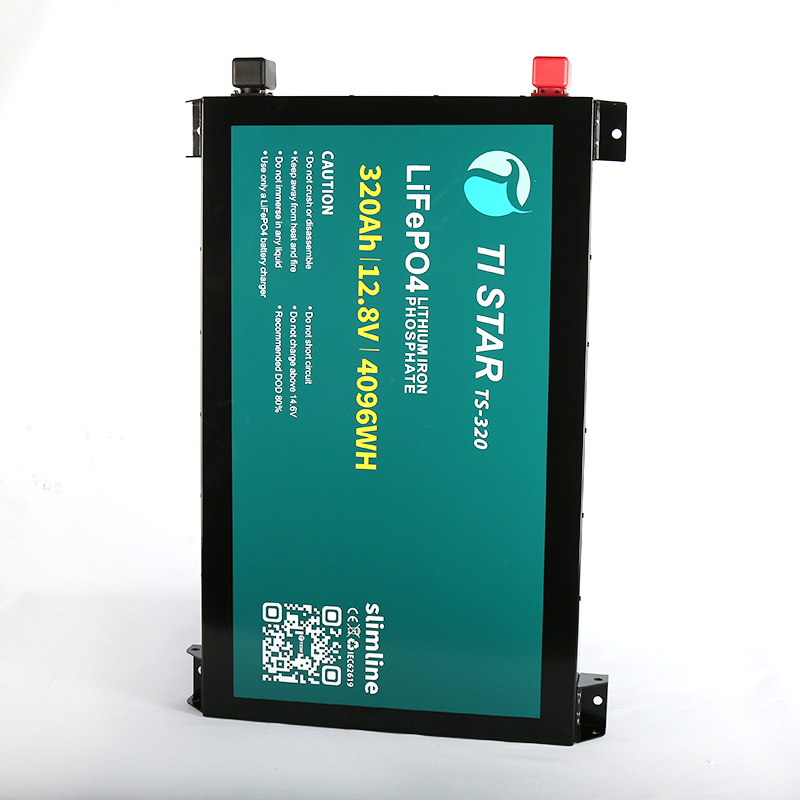

Tistar Smart BMS 12.8V 320Ah Slimline Lithium Battery with Bluetooth/ IP65/ 5-Year Warranty/Brisbane Stock

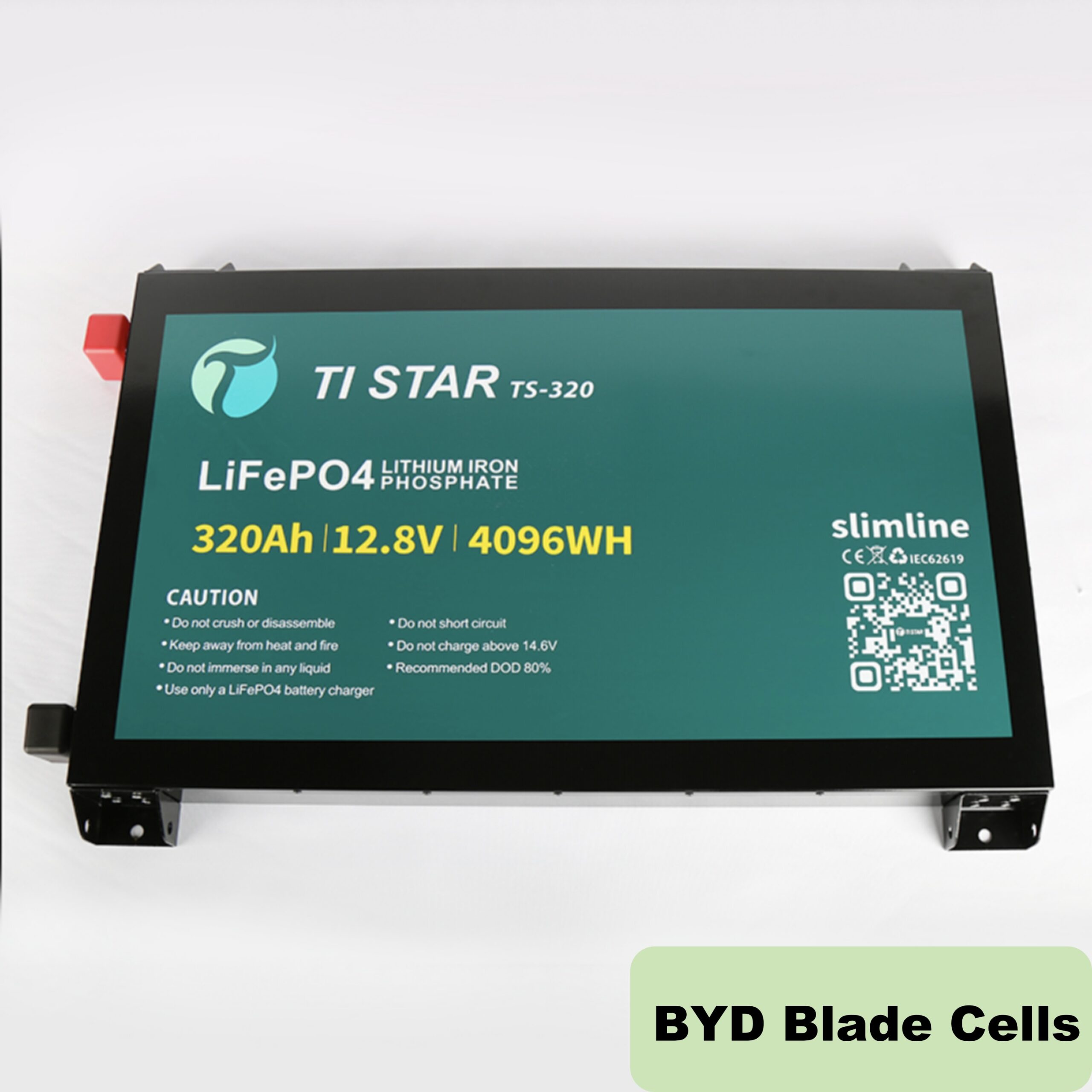

- Built with BYD 320Ah Blade Battery cells – ultra-safe, high-capacity, and long-lasting
- IP65 rated – dustproof and resistant to water jets.

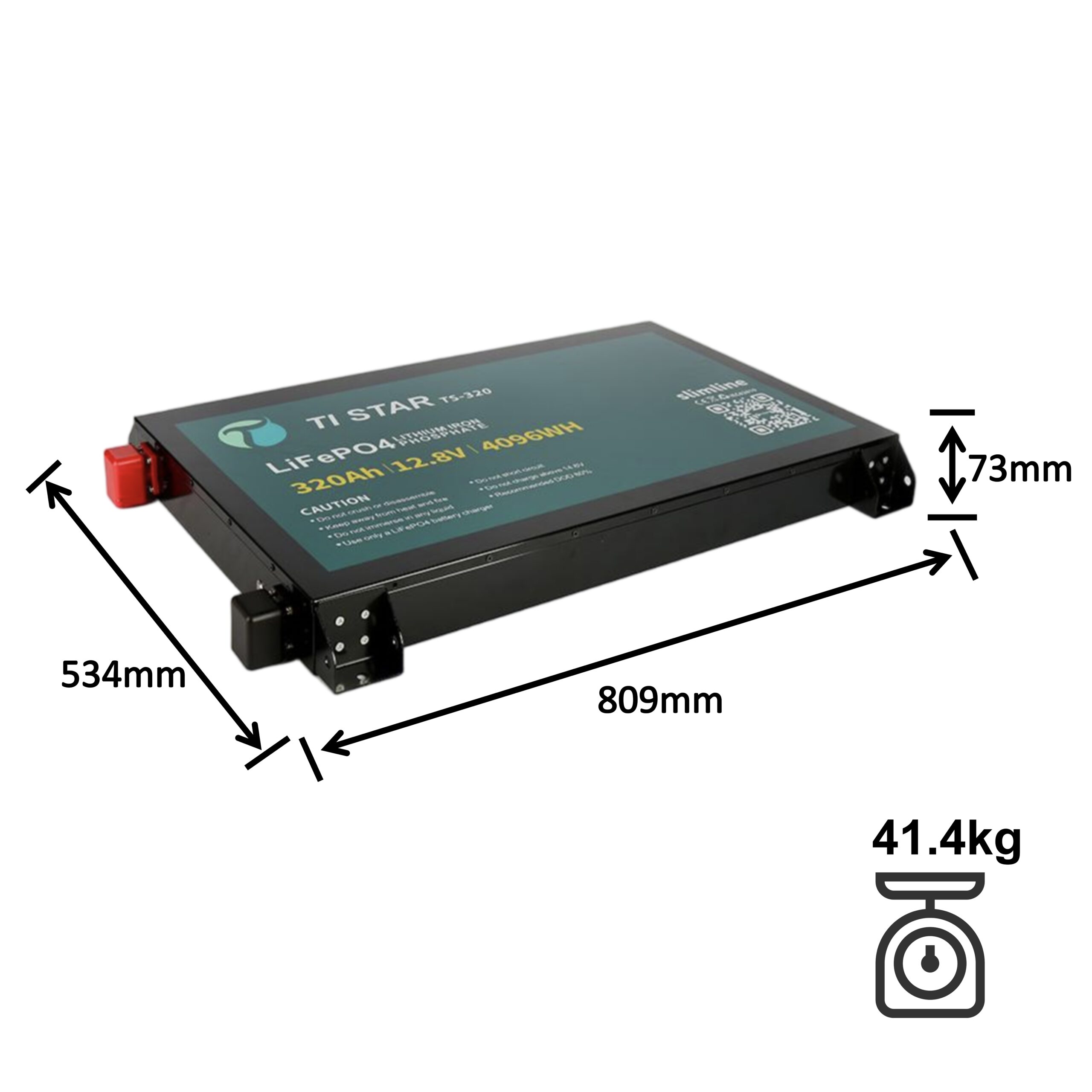

- Slim profile 809x534x73 mm, lightweight 41.4 kg
- Bluetooth 4.0 & external LCD display (3 m cable) for real-time monitoring.
- 260A continuous discharge – runs 3000W inverter effortlessly.
- Up to 260A fast charge – ~90% in 1.16 hours under fast-charge mode.
- Smart BMS provides protection against overcharge, over-discharge, short circuit, over-temperature, and cell imbalance.
- Low-temperature protection: charging limited below 0°C, discharging limited below -20°C.
- Allows up to 4 batteries in parallel.
- 5-year warranty + fast local support (Brisbane warehouse).
⚠️ For parallel use, ensure each battery is fully charged and the voltage difference is less than 0.05V before connection.
Description

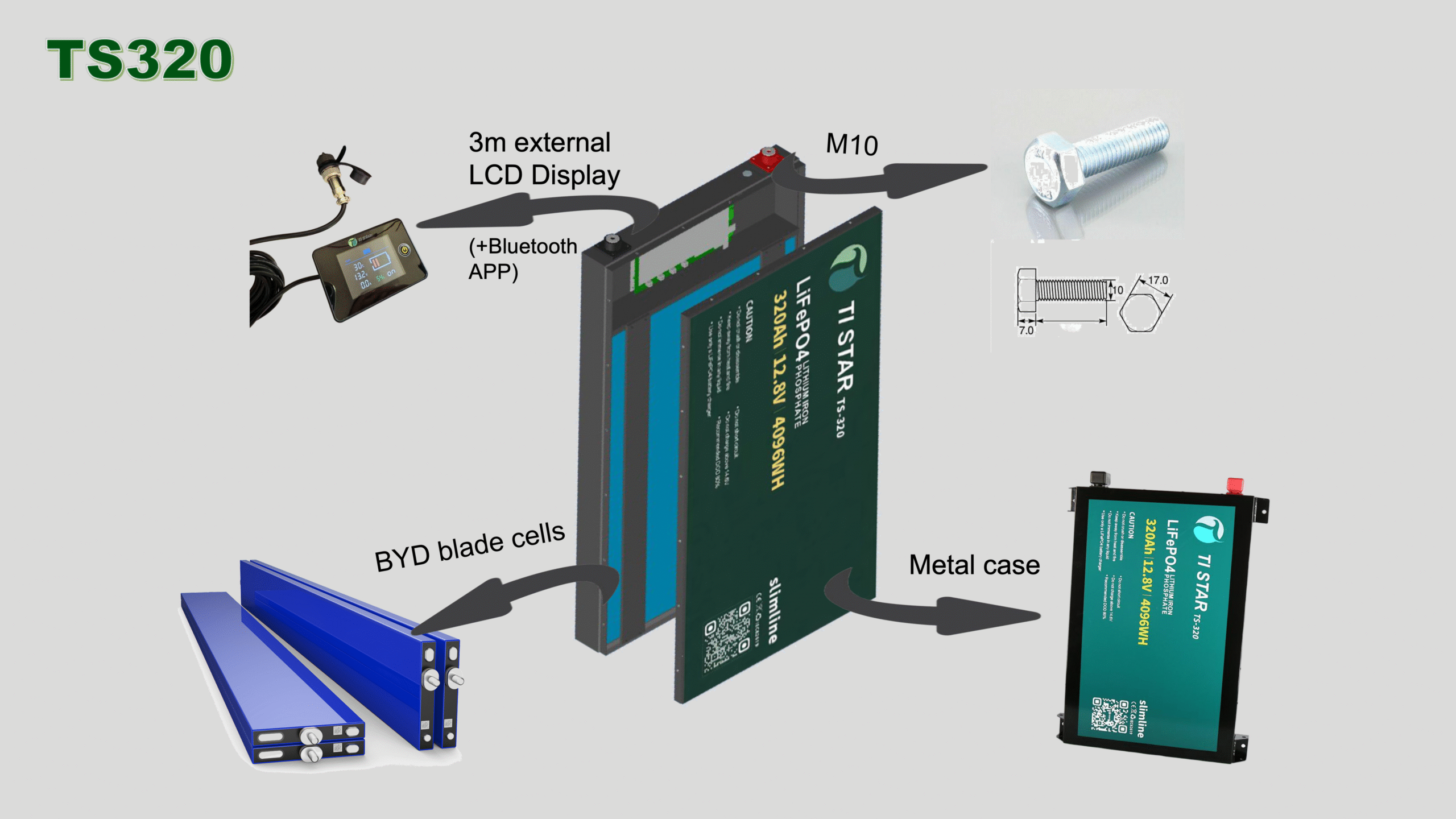

Product Structure Overview
Specs
Electrical Characteristics |
Voltage Nominal |
12.8V 320Ah slimline |
Max. Out Put Power |
3328W ( recommended to use 3000W inverter) |
|
Energy |
4096 Wh |
|
Cycle Life |
>6000 cycles @0.2C, 80% DOD, 25°C |
|
Mechanical |
Dimensions(L*W*H) |
809*534*73mm (including terminals &supports) |
Weight |
41.4 ±1 kg |
|
Case Material |
Metal case |
|
Terminal Type |
M10 |
|
Parallel Connection |
Allows up to 4 units |
|
Standard Charge |
Charge Voltage |
14.6 V ±0.2 V |
Charge Mode |
CCCV |
|
Recommended Charge Current |
65 A |
|
Max. Charge Current |
260 A |
|
Charge Cut-off Voltage |
14.6 V |
|
Standard Discharge |
Continuous Discharge Current |
260 A |
Max discharge current |
550A (3S) |
|
Discharge Cut-off Voltage |
10.0 V |
|
Environmental |
Charge Temperature |
0°C to 60°C |
Discharge Temperature |
-20°C to 65°C |
|
Storage Temperature |
-5°C to 45°C |
|
Ingress Protection Rating |
IP65 |
|
Features |
BluetoothLCD |
Bluetooth 4.0 (iOS & Android app)External LCD Display (3-metre cable) |
