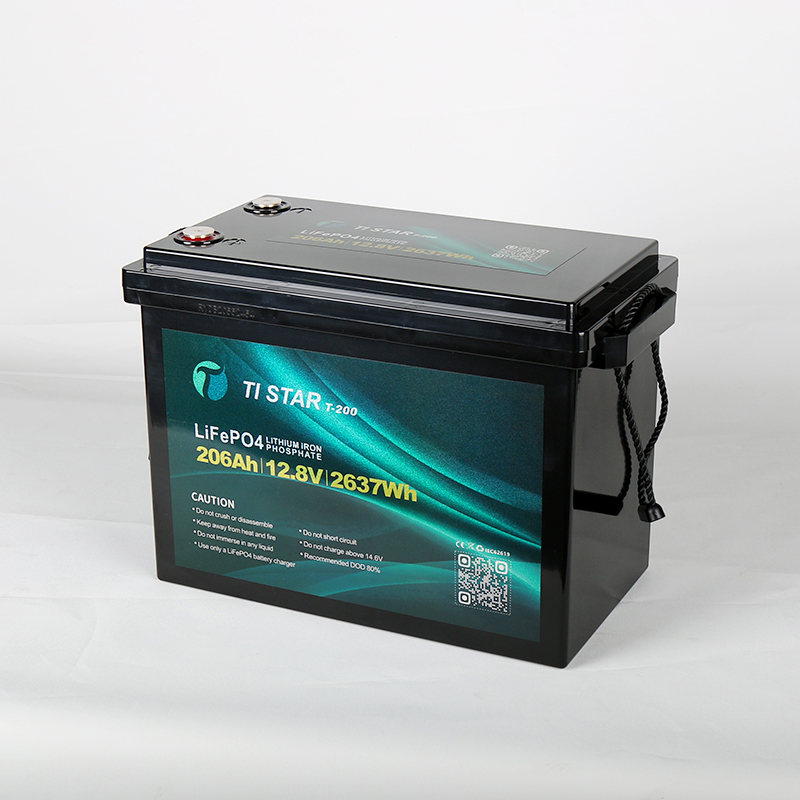

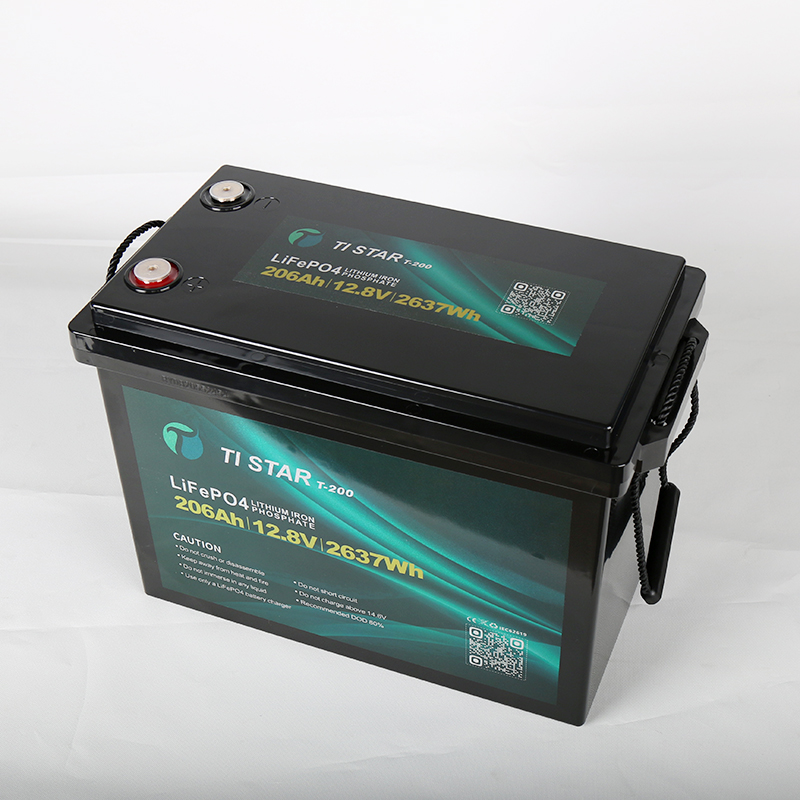

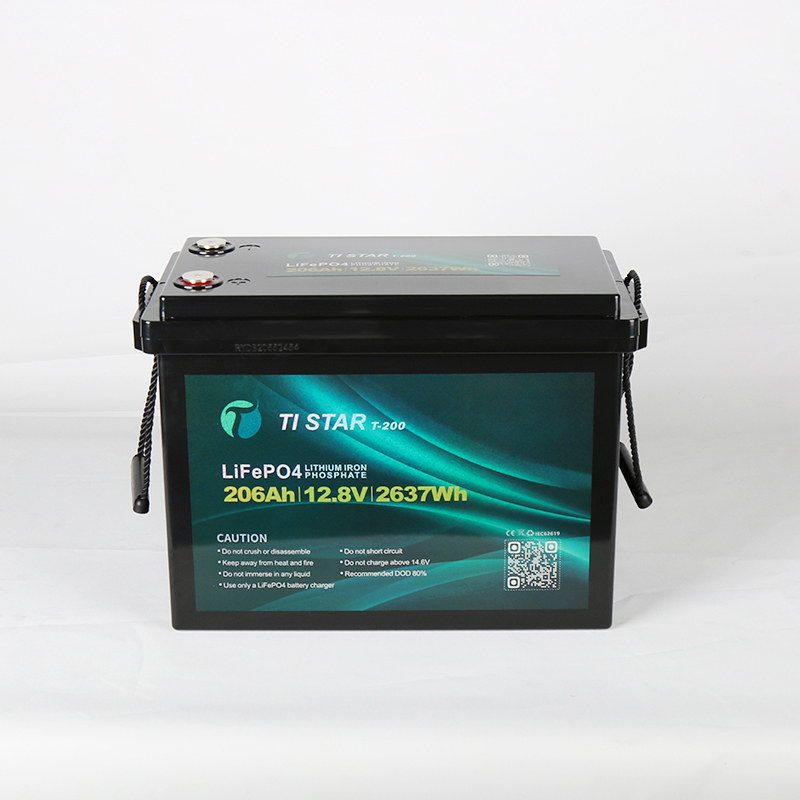

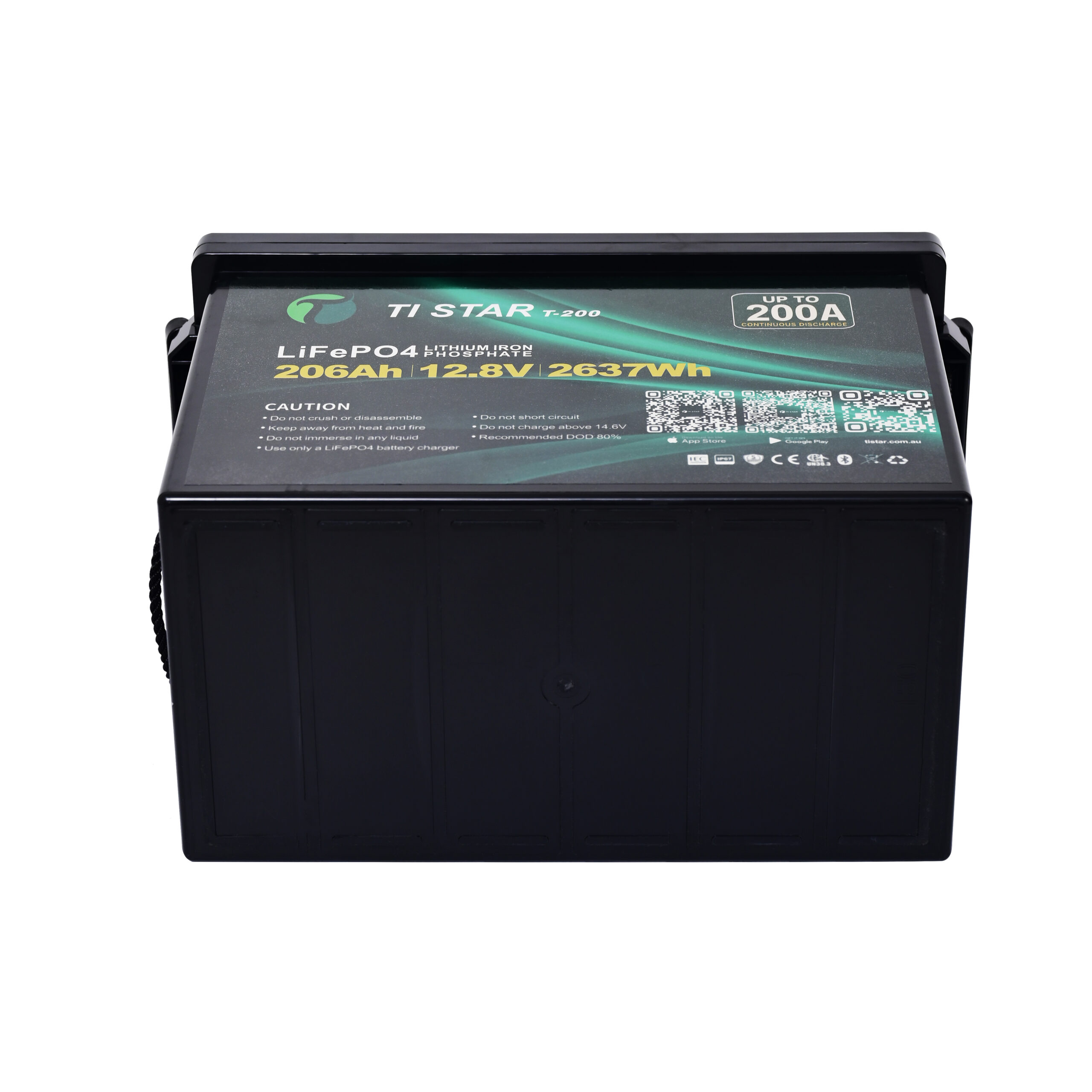

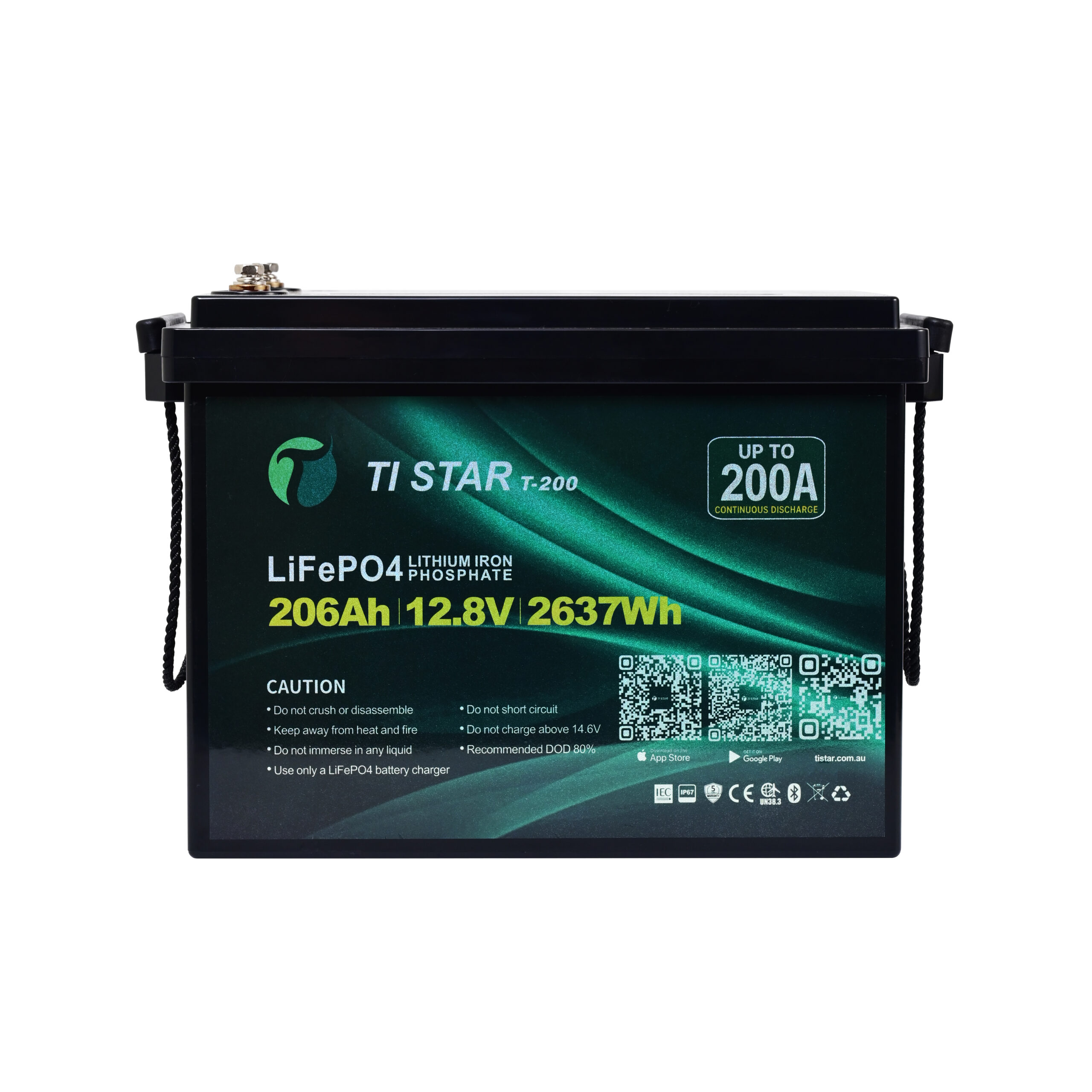

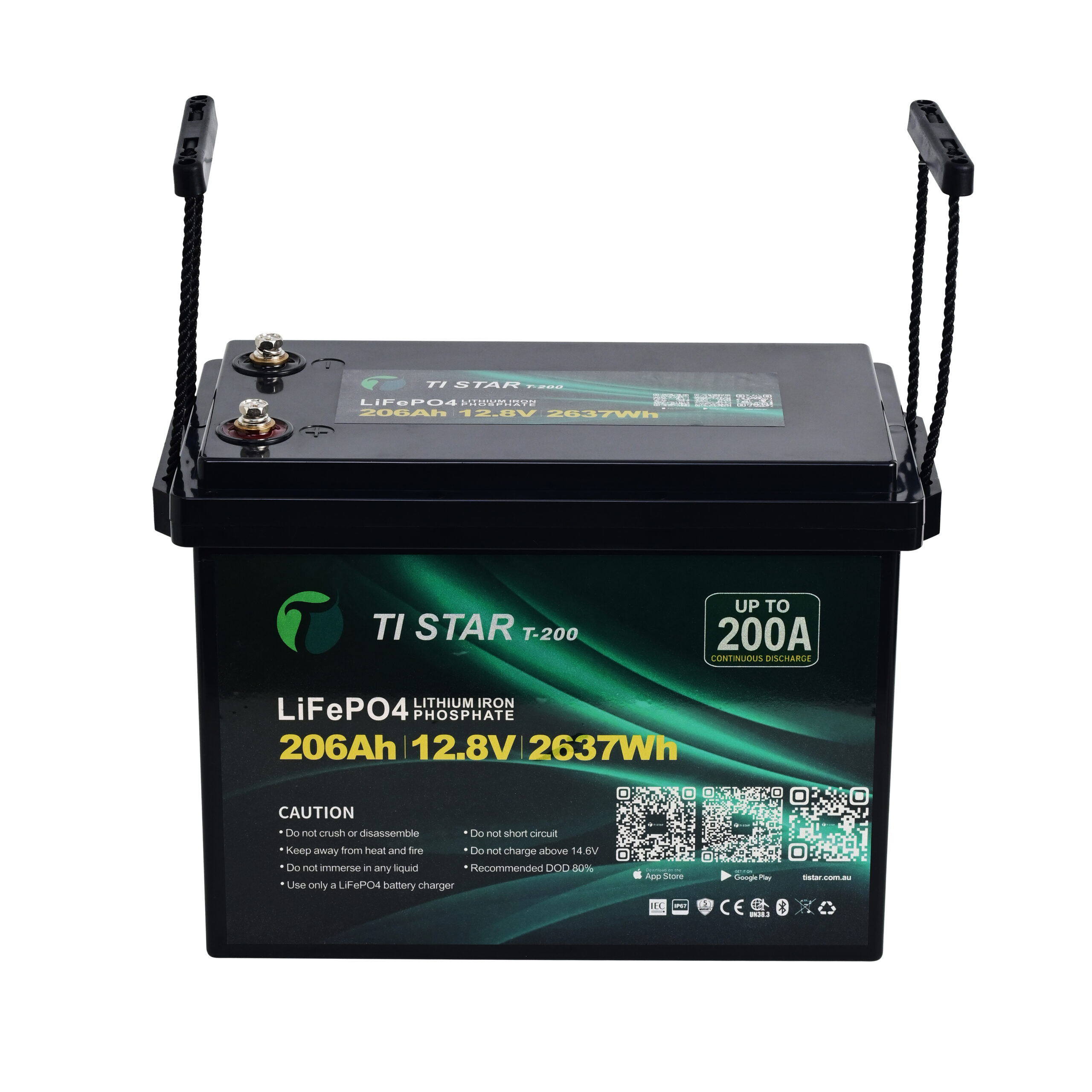

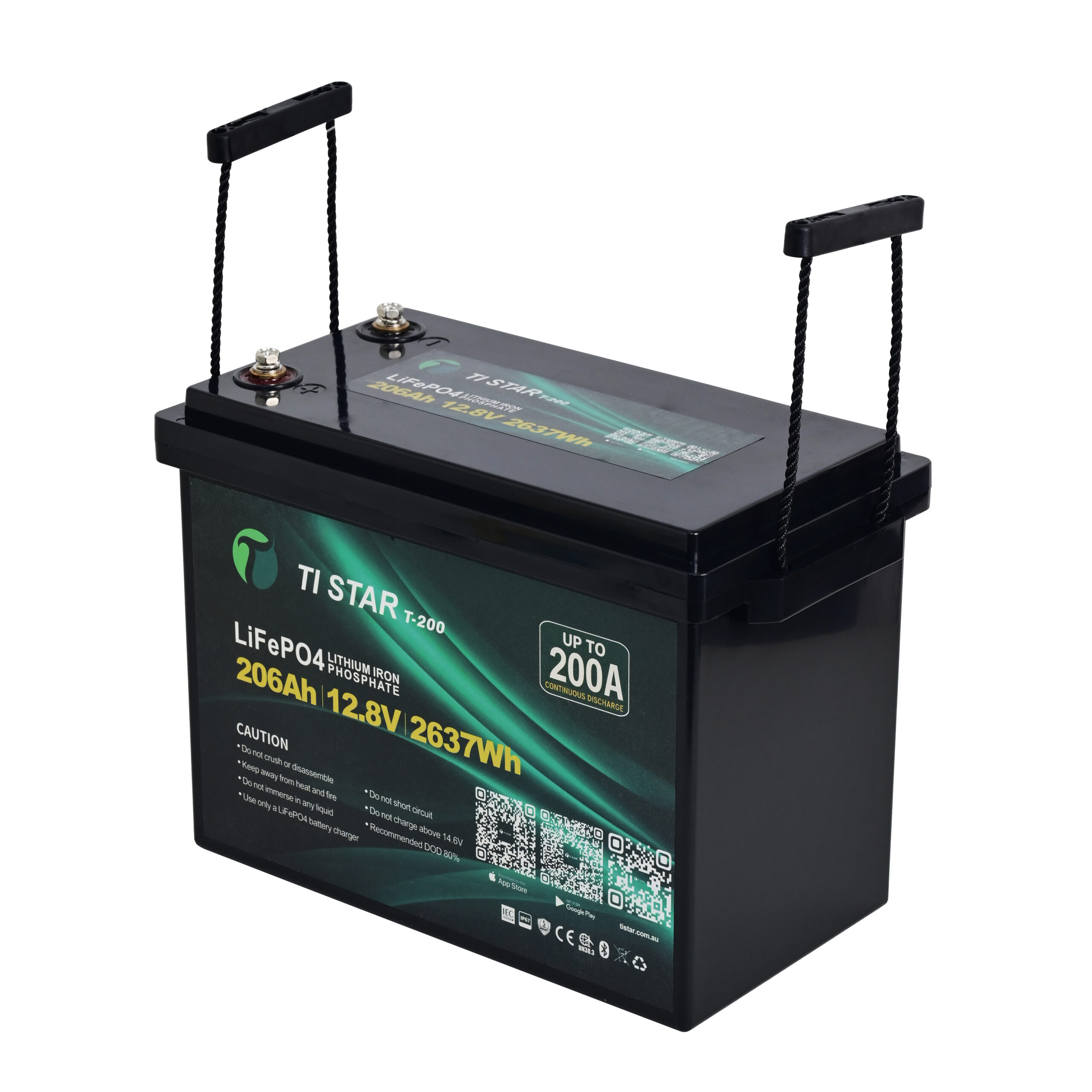

Tistar Smart BMS 12.8V 200Ah Lithium Battery with Bluetooth/ IEC62619/ IP67/ 5-Year Warranty/Brisbane Stock
- Whole battery IEC 62619 certified and AS/NZS 3001:2022 compliant
- IP67 rated, withstands 1m water for 30 minutes.
- Compact size 387*206×273 mm; Lightweight at only 22kg, easy to carry and install.
- Built with LiFePO4 prismatic cells used in large-scale energy storage – reliable, low-resistance, and long-lasting.
- 200A continuous discharge, runs 2000W inverter with ease.
- Up to 200A fast charge, ~90% in 1 hour under fast-charge mode.
- Smart BMS provides protection against overcharge, over-discharge, short circuit, over-temperature, and cell imbalance.
- Low-temperature protection: charging limited below 0°C, discharging limited below -20°C to ensure battery safety.
- Allows up to 4 batteries in parallel.
- 5-year warranty + fast local support (Brisbane warehouse)
⚠️ For parallel use, ensure each battery is fully charged and the voltage difference is less than 0.05V before connection.
Description

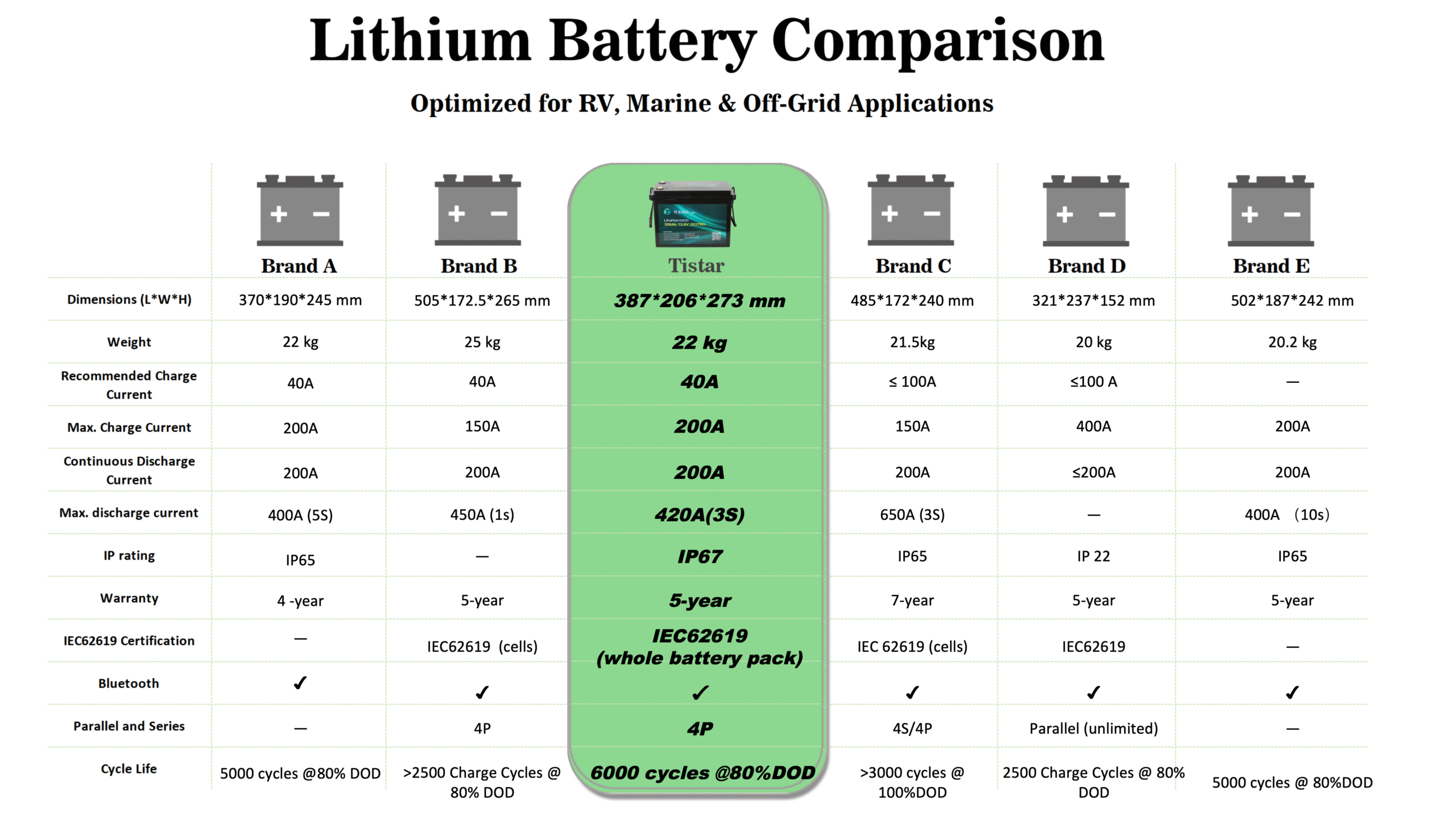

Same Capacity, Different Models
See key specifications side by side to choose the battery that fits your needs.
5 Year Warranty, Brisbane Warehouse, IEC 62619Certification

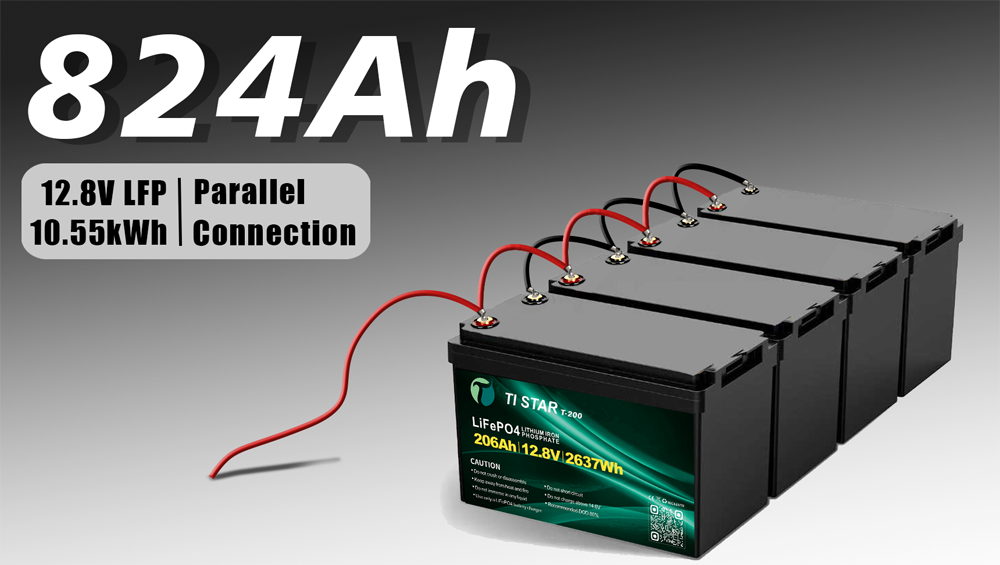

Allows up to 4 batteries in parallel
Total capacity increases up to 12.8V 824Ah
IP67 Waterproof
IP67 Waterproof
Battery Charging Tips 💡
Keep your battery healthy and extend its lifespan by following the recommended practices：
Specs
Electrical Characteristics |
Voltage Nominal |
12.8V 206Ah |
Max. Out Put Power |
2560W ( recommended to use 2000W inverter) |
|
Energy |
2636.8Wh |
|
Cycle Life |
>6000 cycles @0.2C, 80% DOD, 25°C |
|
Mechanical |

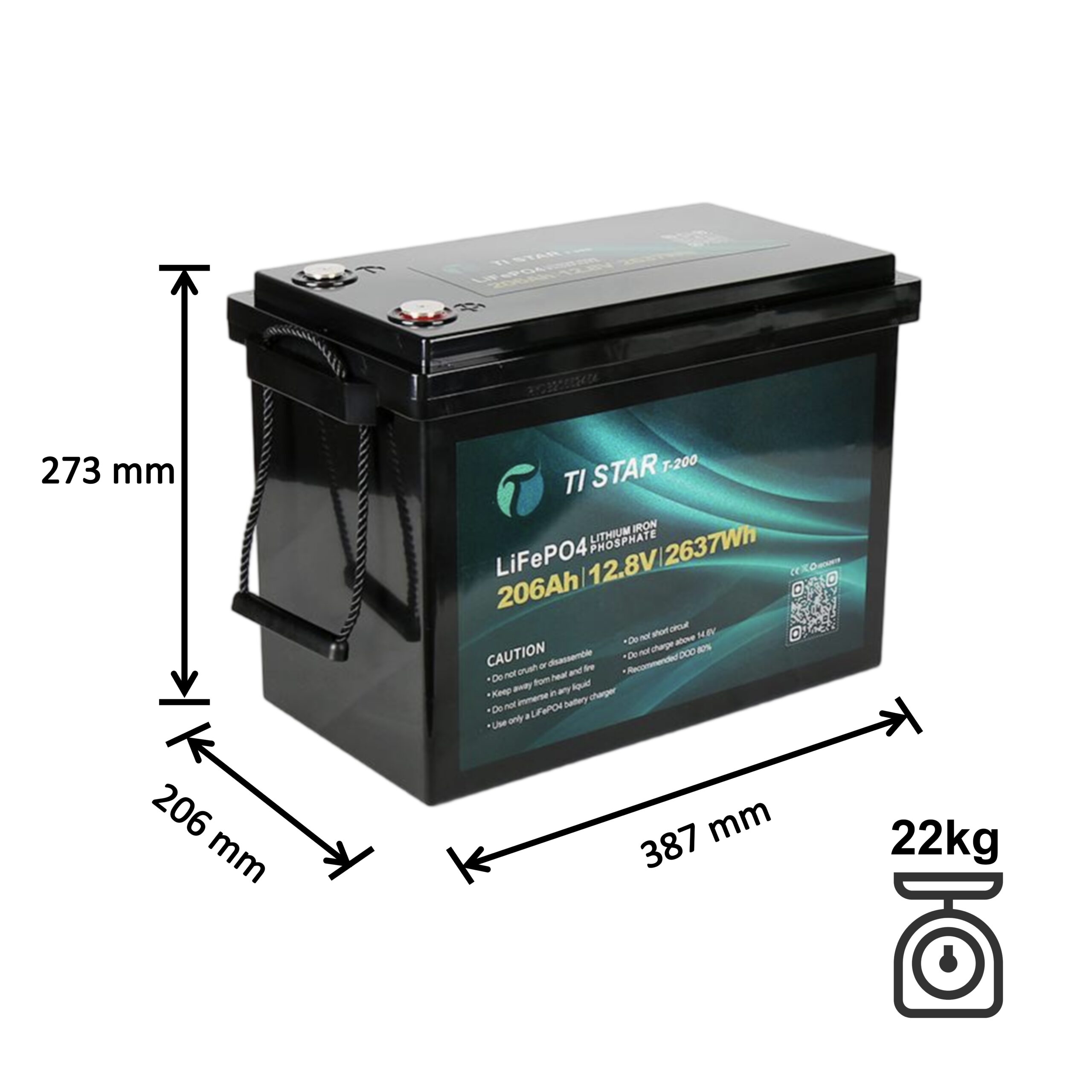

Dimensions(L*W*H) |
387*206*273 (including terminals) |
Weight |
22±1 kg |
|
Case Material |
ABS |
|

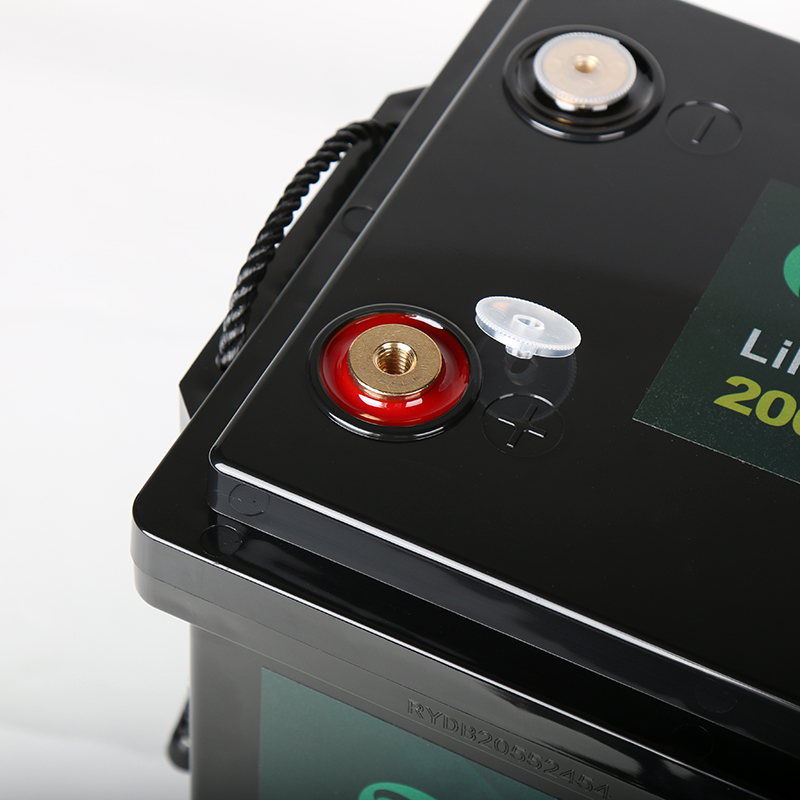

Terminal Type |
M8 |
|
Parallel Connection |
Allows up to 4 units |
|
Standard Charge |
Charge Voltage |
14.6 V ±0.2 V |
Charge Mode |
CCCV |
|
Recommended Charge Current |
40 A |
|
Max. Charge Current |
200 A |
|
Charge Cut-off Voltage |
14.6 V |
|
Standard Discharge |
Continuous Discharge Current |
200 A |
Max discharge current |
420A (3S) |
|
Discharge Cut-off Voltage |
10.0 V |
|
Environmental |
Charge Temperature |
0°C to 60°C |
Discharge Temperature |
-20°C to 65°C |
|
Storage Temperature |
-5°C to 45°C |
|
Ingress Protection Rating |
IP67 |
|
Features |

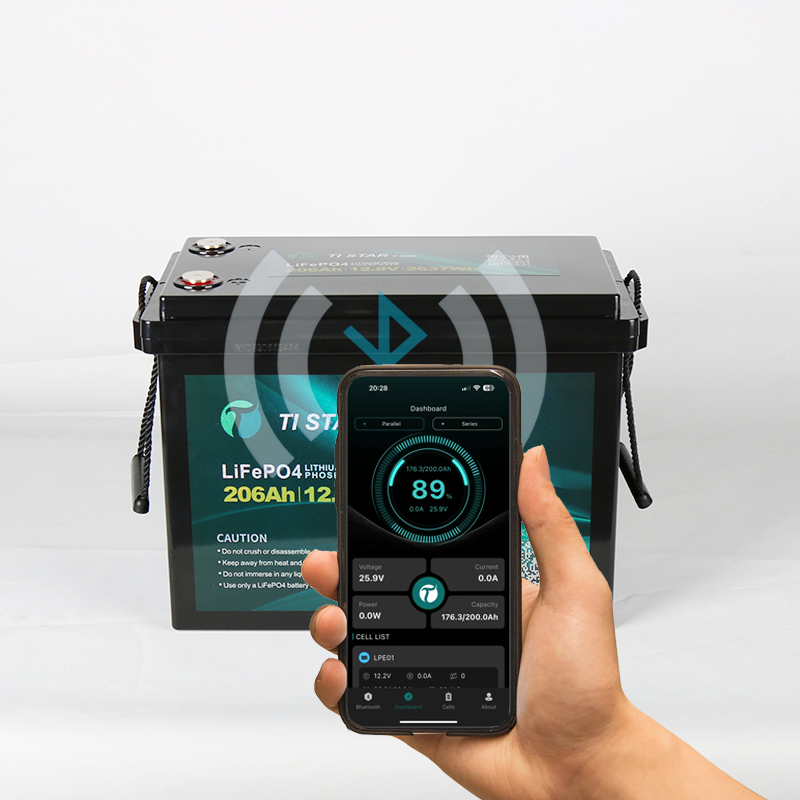

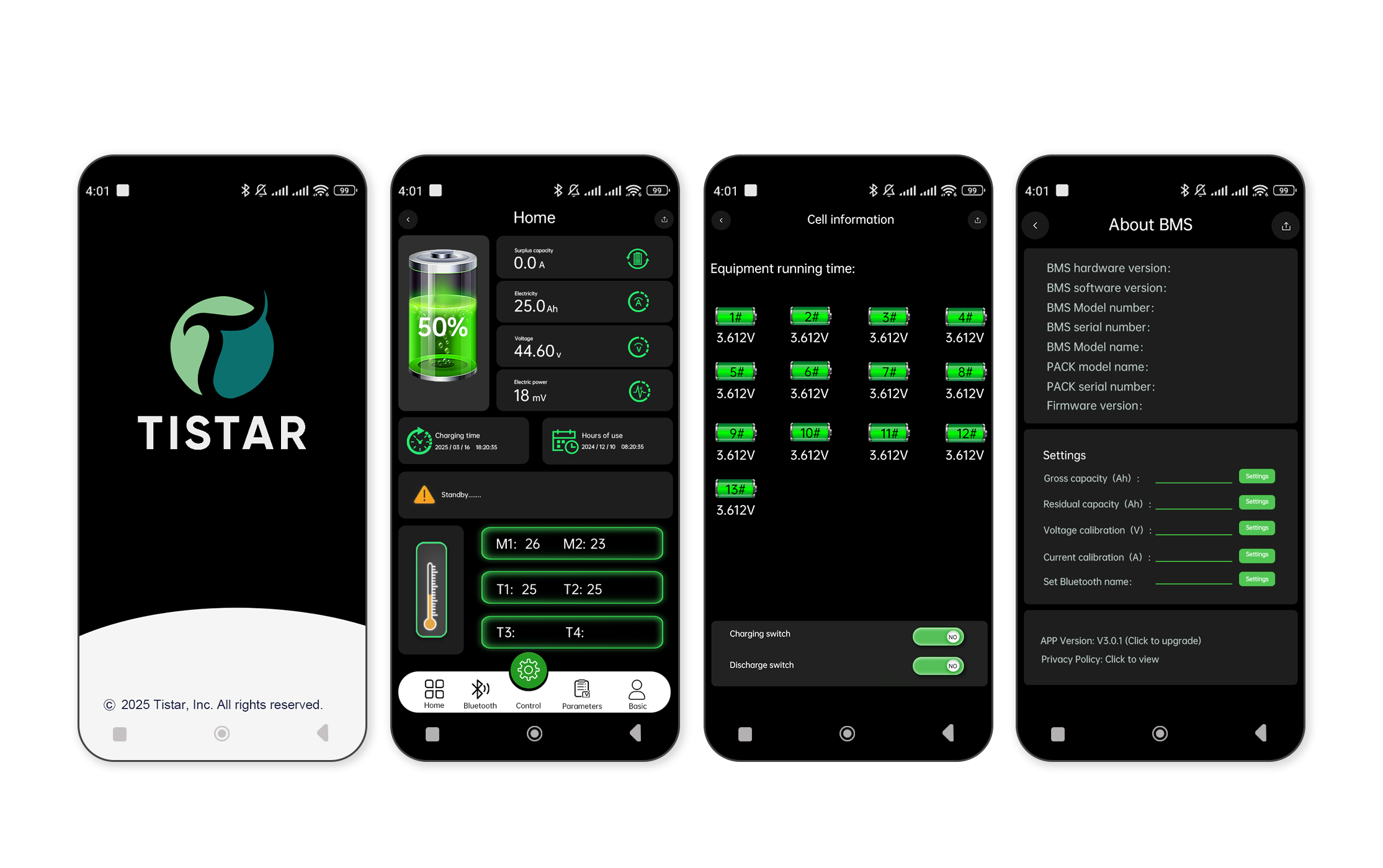

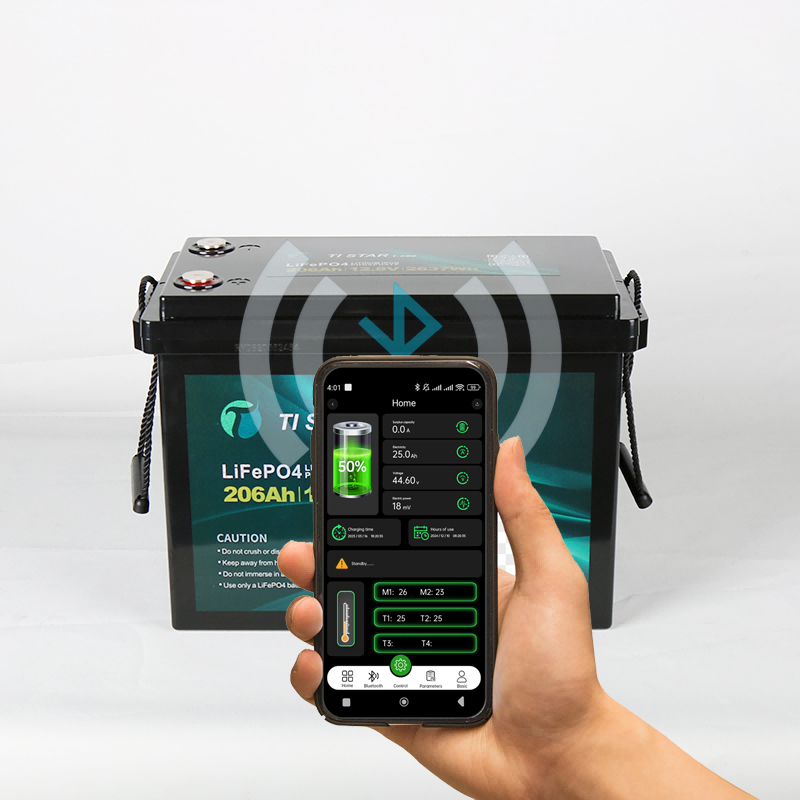

Bluetooth |
Bluetooth 4.0 (iOS & Android app) |
