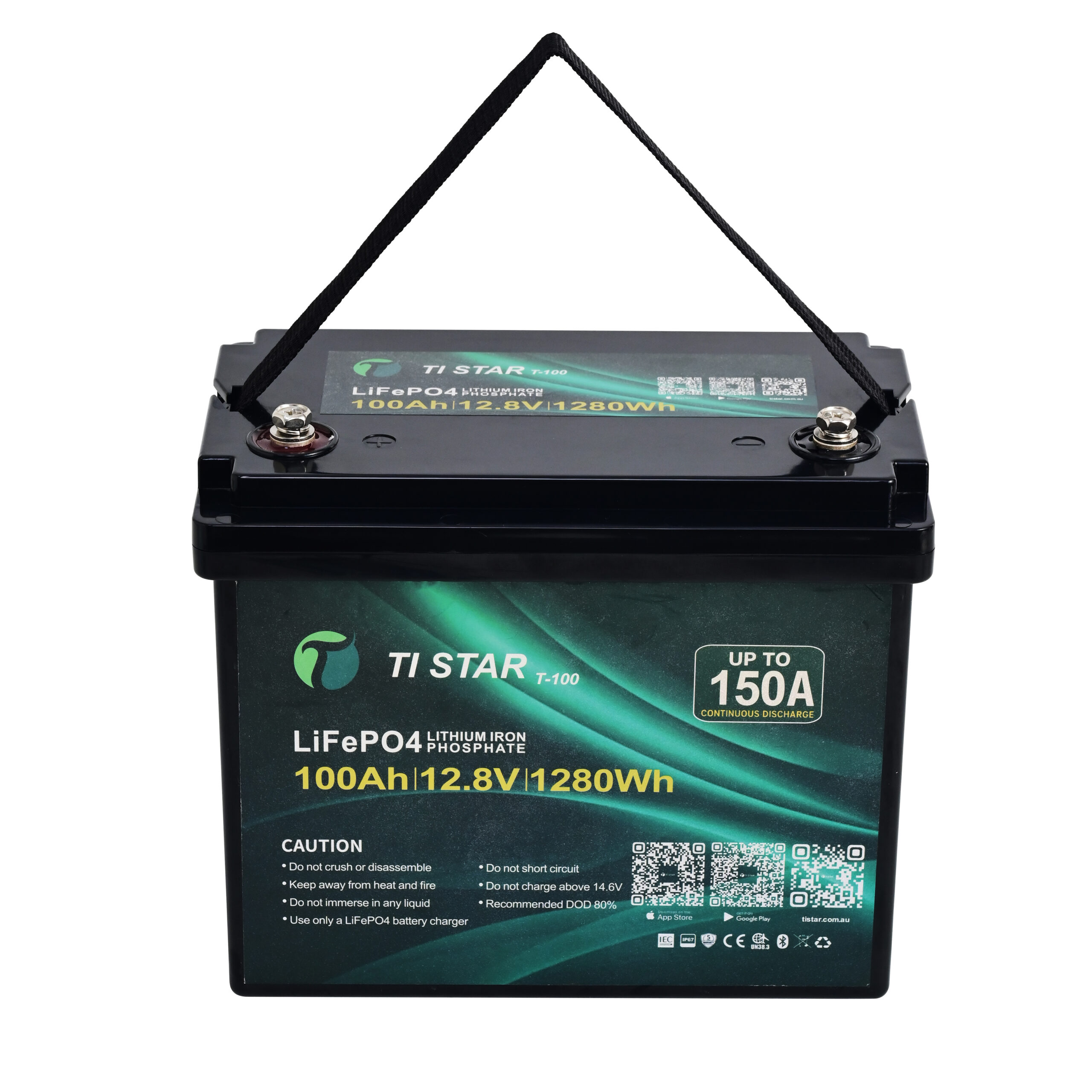

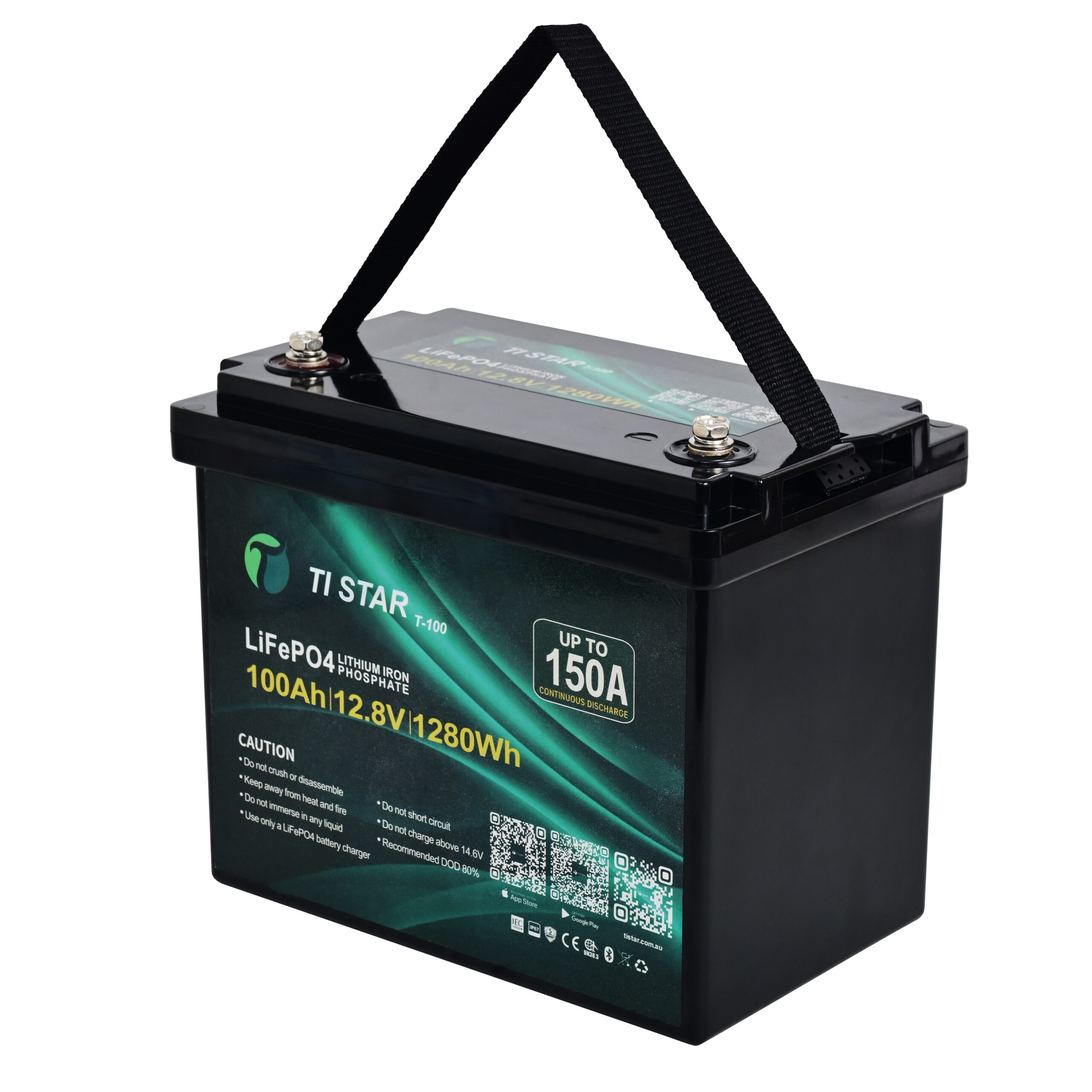

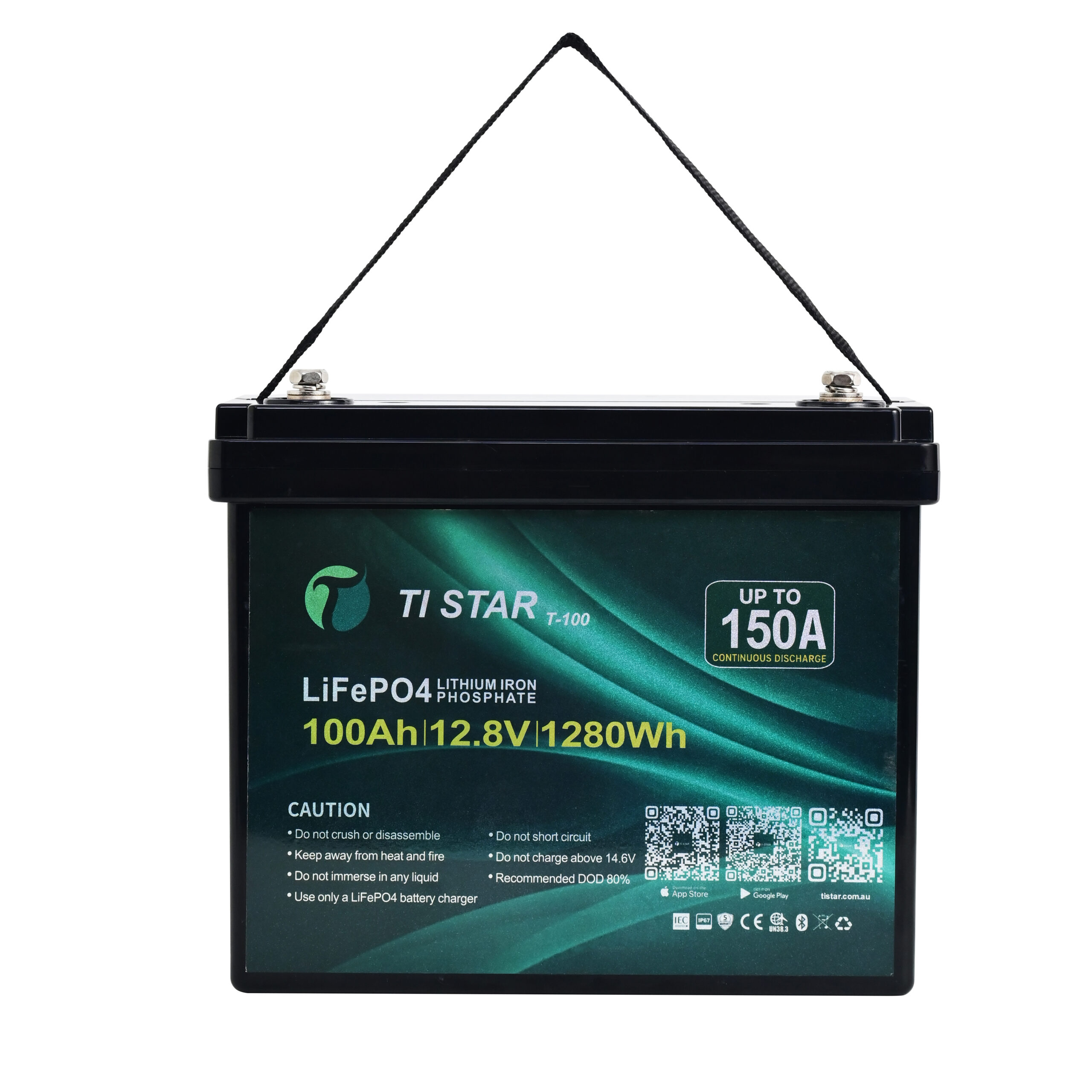

Tistar Smart BMS 12.8V 100Ah Lithium Battery with Bluetooth/IEC62619/ IP67/ 5-Year Warranty/Brisbane Stock
- Whole battery IEC 62619 certified and AS/NZS 3001:2022 compliant
- IP67 rated, withstands 1m water for 30 minutes.

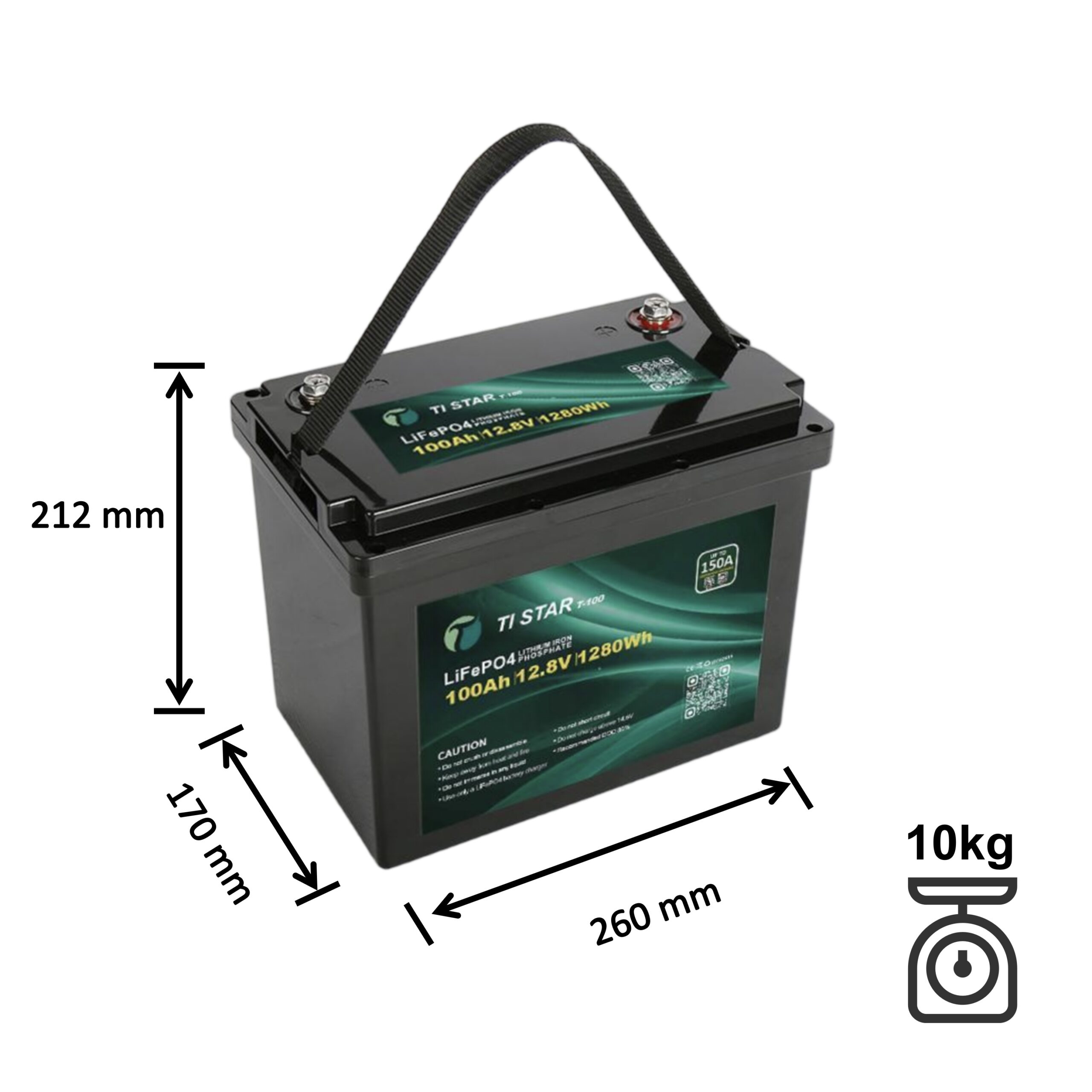

- Compact size 260×170×212 mm, smaller than conventional 100Ah lead-acid case.
- Lightweight at only 10kg, easy to carry and install.
- Built with A-grade LiFePO4 prismatic cells – military-grade quality, low resistance, long life.
- 150A continuous discharge, runs 1500W inverter with ease.
- Up to 100A fast charge, ~90% in 1 hour under fast-charge mode.
- Smart BMS provides protection against overcharge, over-discharge, short circuit, over-temperature, and cell imbalance.
- Low-temperature protection: charging limited below 0°C, discharging limited below -20°C to ensure battery safety.
- Allows up to 4 batteries in parallel.
- 5-year warranty + fast local support (Brisbane warehouse)
⚠️ For parallel use, ensure each battery is fully charged and the voltage difference is less than 0.05V before connection.
Description

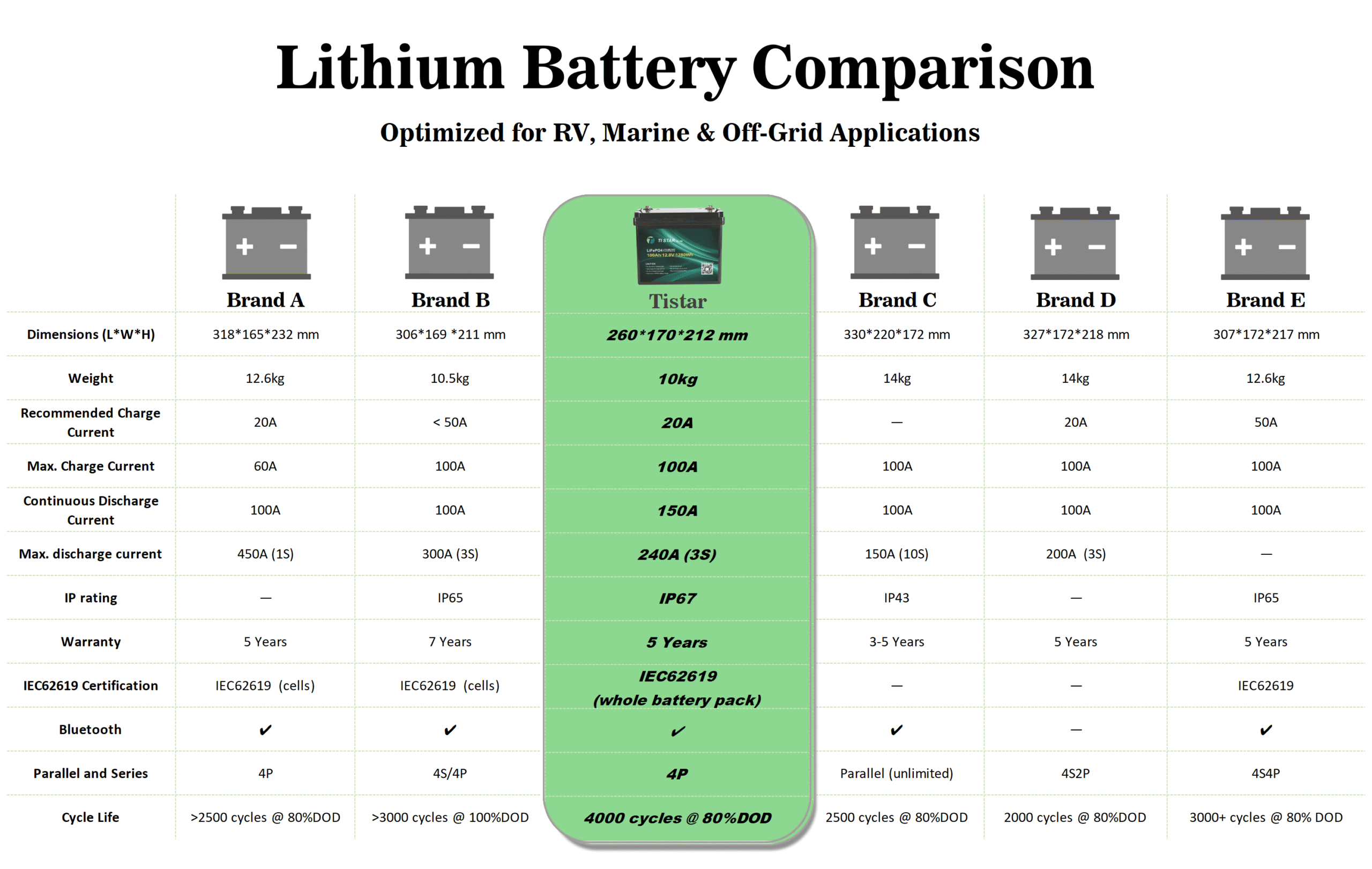

Same Capacity, Different Models
See key specifications side by side to choose the battery that fits your needs.

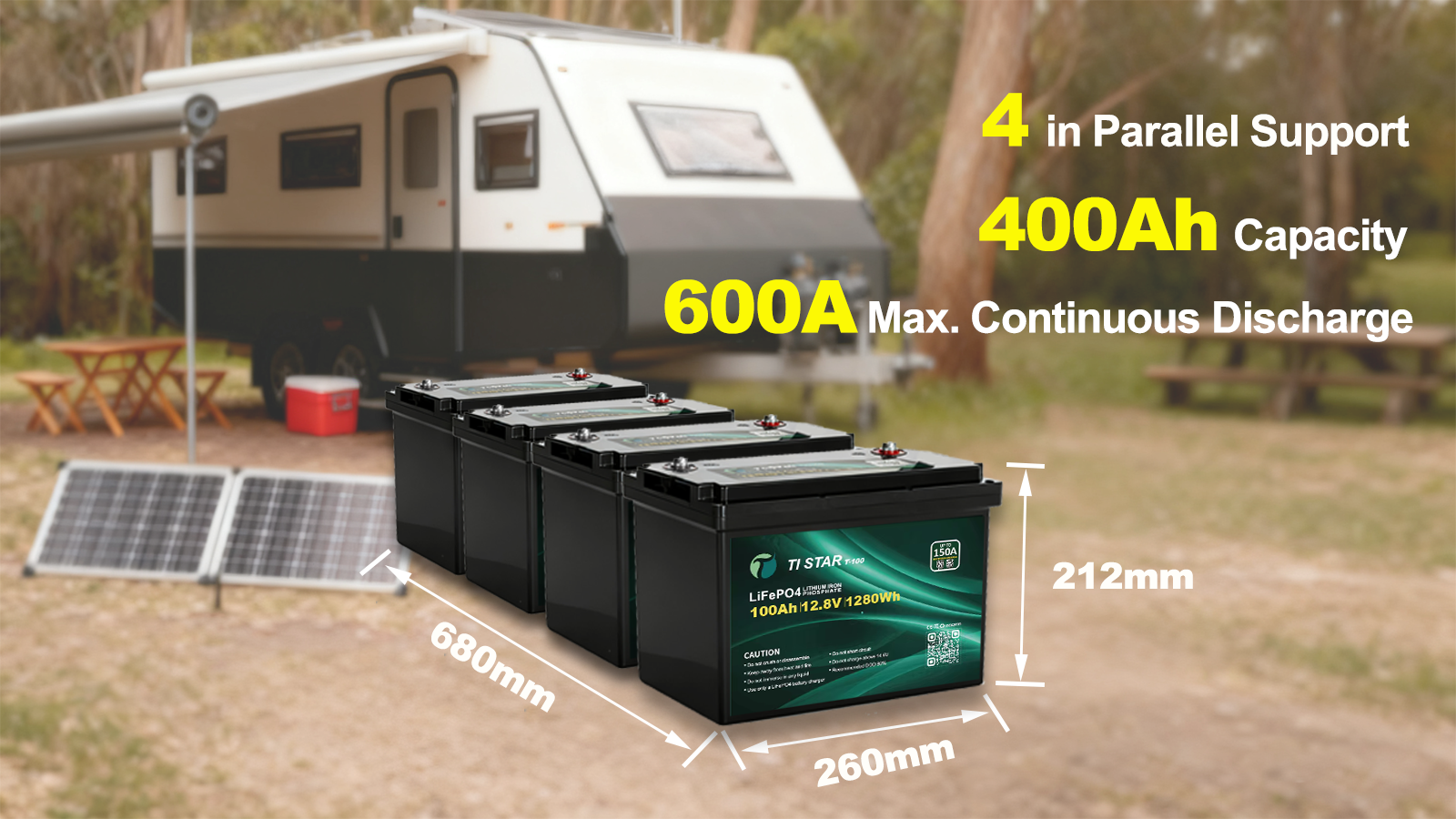

Allows up to 4 batteries in parallel
Total capacity increases up to 12.8V 400Ah
Theoretically allowing max. continuous discharge up to 600A, short-term peaks up to 960A, capable of powering 5120W high-power systems.
Battery Charging Tips 💡
Keep your battery healthy and extend its lifespan by following the recommended practices：
Specs
Electrical Characteristics |
Voltage Nominal |
12.8V 100Ah |
Max. Out Put Power |
1920W ( recommended to use 1500W inverter) |
|
Energy |
1280 Wh |
|
Cycle Life |
>4000 cycles @0.2C, 80% DOD, 25°C |
|
Mechanical |
Dimensions(L*W*H) |
260*170*212mm (including terminals) |
Weight |
10±1 kg |
|
Case Material |
ABS |
|
Terminal Type |
M8 |
|
Parallel Connection |
Allows up to 4 units |
|
Standard Charge |
Charge Voltage |
14.6 V ±0.2 V |
Charge Mode |
CCCV |
|
Recommended Charge Current |
20 A |
|
Max. Charge Current |
100 A |
|
Charge Cut-off Voltage |
14.6 V |
|
Standard Discharge |
Continuous Discharge Current |
150 A |
Max discharge current |
240A (3S) |
|
Discharge Cut-off Voltage |
10.0 V |
|
Environmental |
Charge Temperature |
0°C to 60°C |
Discharge Temperature |
-20°C to 65°C |
|
Storage Temperature |
-5°C to 45°C |
|
Ingress Protection Rating |
IP67 |
|
Features |
Bluetooth |

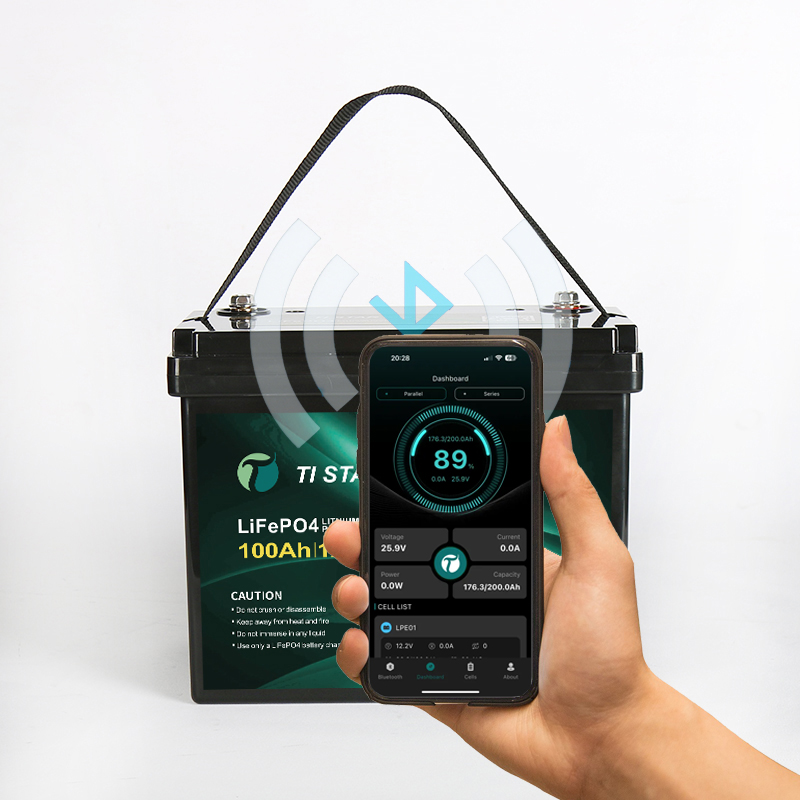

Bluetooth 4.0 (iOS & Android app) |
Peter –
Your battery is fantastic.I think they’re performing exceptionally well. They’ve been powering the air conditioner in my van all night and are still going strong. Handling 100 amps with no problem whatsoever. 🔝
